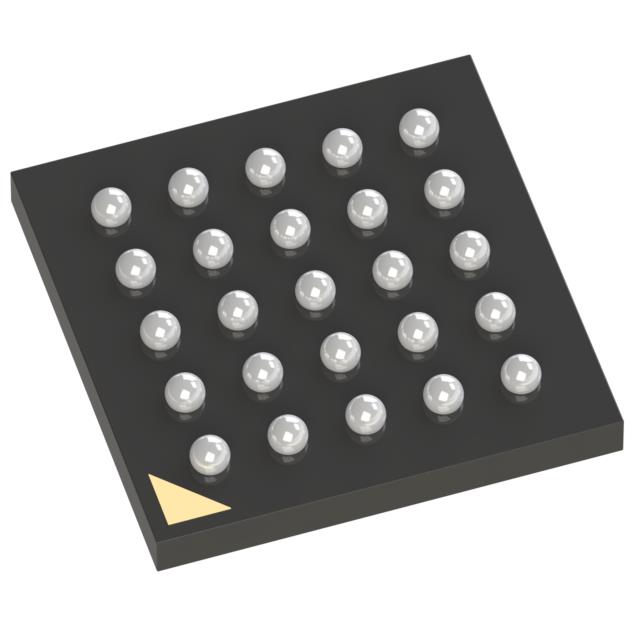

STMPE1601TBR
IC XPNDR 400KHZ I2C 25TFBGAManufacturer: STMicroelectronics
Categories: I/O Expanders
Quality Control: Learn More
STMicroelectronics STMPE1601TBR is a 16-bit I/O expander from the Xpander Logic™ series. This device features an I2C interface with a maximum clock frequency of 400 kHz, facilitating efficient communication in embedded systems. It offers 16 open-drain I/O pins, configurable for various functions including keypad scanning, PWM generation, and interrupt outputs. The STMPE1601TBR includes a Power-On Reset (POR) circuit for reliable initialization. Designed for surface mounting, it is supplied in a compact 25-TFBGA (3x3) package on tape and reel. Operating within a voltage range of 1.65V to 3.6V, this component is suitable for applications in consumer electronics, industrial automation, and automotive systems.
Additional Information
Series: Xpander Logic™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Keypad Controller, POR, PWM |
| Packaging | Tape & Reel (TR) |
| Package / Case | 25-TFBGA |
| Output Type | Open Drain |
| Mounting Type | Surface Mount |
| Interface | I2C |
| Number of I/O | 16 |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.65V ~ 3.6V |
| Clock Frequency | 400 kHz |
| Interrupt Output | Yes |
| Supplier Device Package | 25-TFBGA (3x3) |
| Current - Output Source/Sink | 4mA |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
STMPE1801BJR
IC XPNDR 400KHZ I2C 25FLIPCHIP

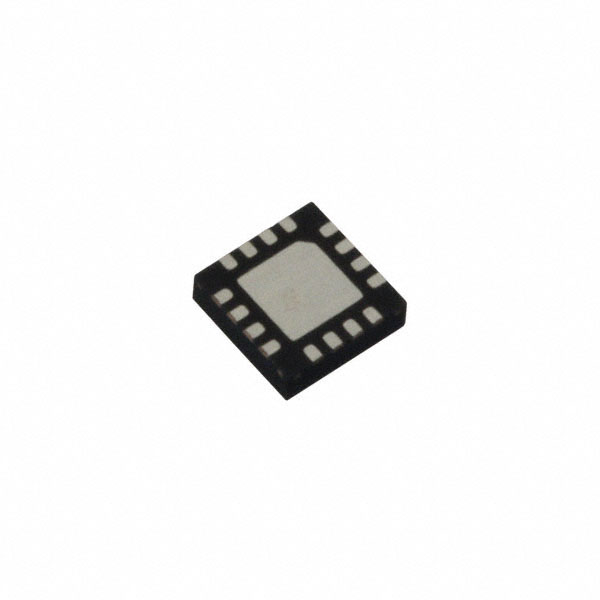

STMPE1600QTR
