L9907TR
IC GATE DRVR HALF-BRIDGE 64TQFPManufacturer: STMicroelectronics
Categories: Gate Drivers
Quality Control: Learn More
STMicroelectronics L9907TR is a high-performance half-bridge gate driver IC designed for automotive applications. This AEC-Q100 qualified component features six independent drivers, enabling control of N-channel MOSFETs in a 3-phase configuration. The L9907TR operates within a supply voltage range of 5V to 54V, with typical rise and fall times of 35ns, ensuring efficient switching. Its 64-TQFP-EP (10x10) package with an exposed pad facilitates effective thermal management for demanding operational conditions, with an operating temperature range of -40°C to 150°C (TJ). The logic voltage thresholds are 0.8V for VIL and 2V for VIH. This device is suitable for power management systems within the automotive sector, including electric vehicle powertrains and vehicle body control modules.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

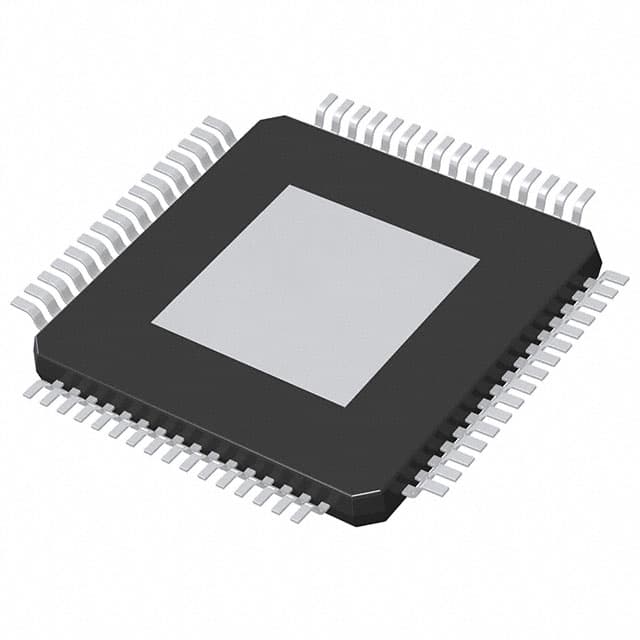

| Package / Case | 64-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 5V ~ 54V |
| Input Type | - |
| Supplier Device Package | 64-TQFP-EP (10x10) |
| Rise / Fall Time (Typ) | 35ns, 35ns |
| Channel Type | 3-Phase |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 6 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | - |
| Grade | Automotive |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
