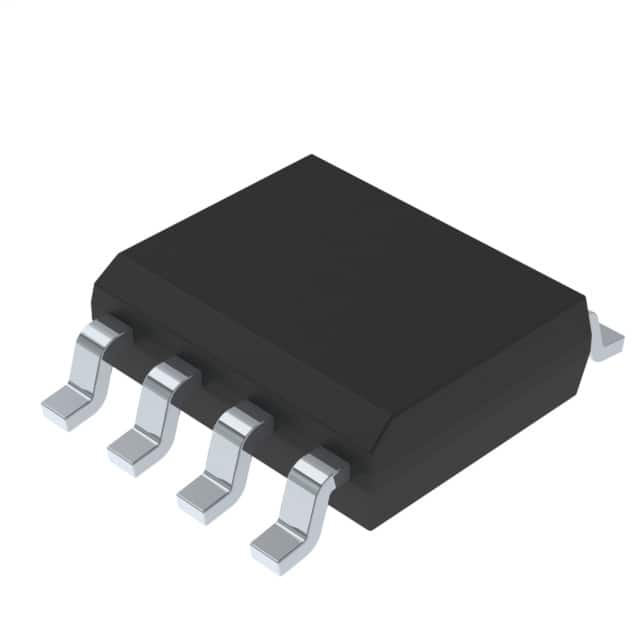

L6569D
IC GATE DRVR HALF-BRIDGE 8SOManufacturer: STMicroelectronics
Categories: Gate Drivers
Quality Control: Learn More
Half-Bridge Gate Driver IC RC Input Circuit 8-SOIC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 10V ~ 16.6V |
| Input Type | RC Input Circuit |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Supplier Device Package | 8-SOIC |
| Rise / Fall Time (Typ) | - |
| Channel Type | Synchronous |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 170mA, 270mA |
| Programmable | Not Verified |
