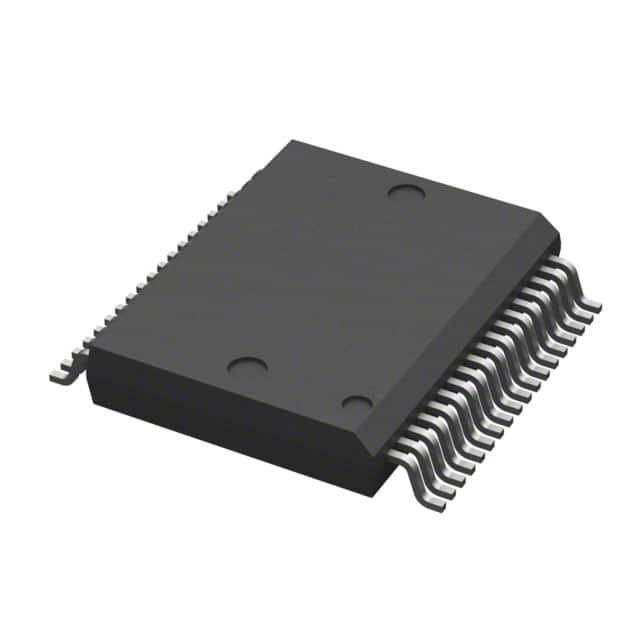

VNH9013YTR
IC HALF BRIDGE DRVR 40A 36PWRSSOManufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The STMicroelectronics VNH9013YTR is a high-side/low-side driver designed for DC motor control and general-purpose applications. This device features two half-bridge output stages, each capable of delivering up to 40A continuous output current. The VNH9013YTR utilizes MOSFET technology and is housed in a 36-PowerBFSOP package for surface mounting. It operates with a supply voltage of up to 80V and a load voltage of 80V, with typical on-resistance values of 7.8mOhm for the low-side and 6mOhm for the high-side switches. This component is qualified to AEC-Q100 and is rated for automotive applications, operating at junction temperatures up to 175°C. Its load driving capabilities extend to inductive and resistive loads.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-PowerBFSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Interface | - |
| Operating Temperature | 175°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 80V |
| Rds On (Typ) | 7.8mOhm LS, 6mOhm HS |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | 40A |
| Current - Peak Output | - |
| Technology | MOSFET (Metal Oxide) |
| Voltage - Load | 80V |
| Supplier Device Package | PowerSSO-36 TP |
| Fault Protection | - |
| Load Type | Inductive, Resistive |
| Grade | Automotive |
| Qualification | AEC-Q100 |
