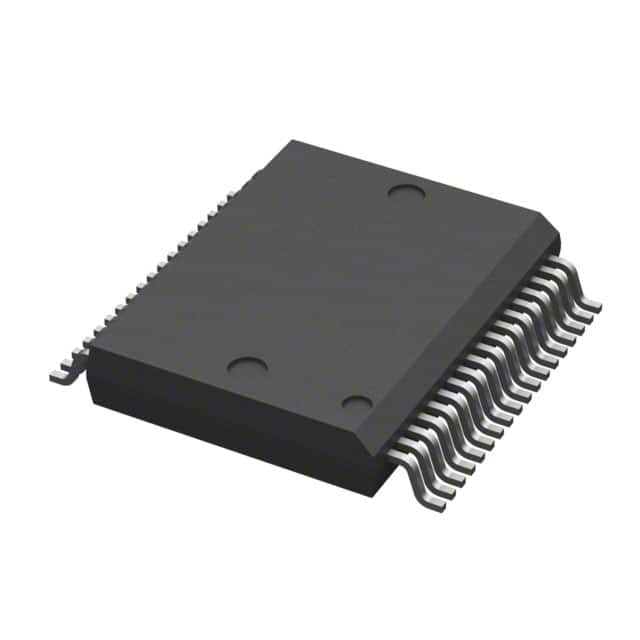

VNH9013Y
IC HALF BRIDGE DRVR 40A 36PWRSSOManufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
STMicroelectronics VNH9013Y is a single-chip half-bridge driver designed for automotive applications. This device integrates a high-side and low-side N-channel MOSFET power stage with a voltage and temperature sensing, as well as an embedded advanced analog control circuitry. It is qualified to the AEC-Q100 standard and operates with a load supply voltage of up to 80V. The VNH9013Y offers a continuous output current capability of 40A per channel, with low on-state resistance of 7.8mOhm for the low-side switch and 6mOhm for the high-side switch. It is suitable for driving DC motors and general-purpose loads, supporting both inductive and resistive load types. The component is housed in a PowerSSO-36 TP package for surface mounting and operates across an extended temperature range of -40°C to 175°C (TJ).
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 36-PowerBFSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Interface | - |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 80V |
| Rds On (Typ) | 7.8mOhm LS, 6mOhm HS |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | 40A |
| Current - Peak Output | - |
| Technology | MOSFET (Metal Oxide) |
| Voltage - Load | 80V (Max) |
| Supplier Device Package | PowerSSO-36 TP |
| Fault Protection | - |
| Load Type | Inductive, Resistive |
| Grade | Automotive |
| Qualification | AEC-Q100 |
