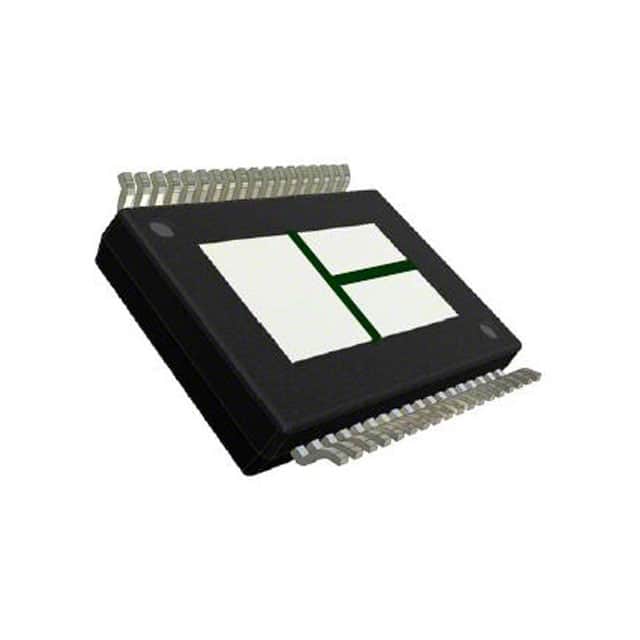

VNH7013XPTR-E
IC HALF BRIDGE DRVR 40A 36PWRSSOManufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
STMicroelectronics' VNH7013XPTR-E is a Half Bridge Driver from the VIPower™ series. This electronic component is designed for applications requiring robust motor control, particularly for DC motors and general-purpose power management. Featuring a PowerSSO-36 TP package for surface mounting, it offers a high output current capability of 40A per channel. The device integrates two Half Bridge drivers with optimized power MOSFET technology, boasting low on-resistance values of 7.3mOhm for the low-side switch and 5.7mOhm for the high-side switch. Over-temperature fault protection is built-in for enhanced reliability. The operating temperature range spans from -40°C to 175°C (TJ), making it suitable for demanding environments. This component is commonly found in automotive and industrial automation systems.
Additional Information
Series: VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-PowerBFSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 72V (Max) |
| Rds On (Typ) | 7.3mOhm LS, 5.7mOhm HS |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | 40A |
| Current - Peak Output | - |
| Technology | Power MOSFET |
| Voltage - Load | - |
| Supplier Device Package | PowerSSO-36 TP |
| Fault Protection | Over Temperature |
| Load Type | Inductive |
