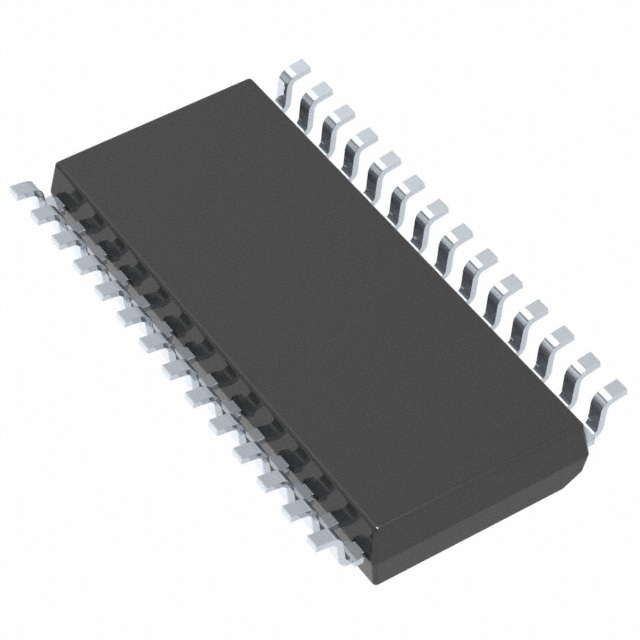

VN5770AKPTR-E
IC HALF BRIDGE DRIVER 8.5A 28SOManufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The STMicroelectronics VN5770AKPTR-E is a high-side driver IC from the OMNIFET II™, VIPower™ series, featuring a half-bridge (2) output configuration. This component is designed for applications requiring efficient control of DC motors, general-purpose loads, and relays. With a maximum load voltage of 41V and a supply voltage range of 4.5V to 36V, it offers robust performance. Each channel provides a typical output current of 8.5A with a low Rds (On) of 160mOhm. The device incorporates comprehensive fault protection, including current limiting, ESD, over-temperature, over-voltage, short-circuit, and UVLO. The interface is logic-level compatible. This surface-mount component is supplied in a 28-SOIC package and operates across an industrial temperature range of -40°C to 150°C. Its versatility makes it suitable for automotive, industrial automation, and power control systems.
Additional Information
Series: OMNIFET II™, VIPower™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4.5V ~ 36V |
| Rds On (Typ) | 160mOhm |
| Applications | DC Motors, General Purpose, Relays |
| Current - Output / Channel | 8.5A |
| Current - Peak Output | - |
| Technology | Power MOSFET |
| Voltage - Load | 41V (Max) |
| Supplier Device Package | 28-SO |
| Fault Protection | Current Limiting, ESD, Over Temperature, Over Voltage, Short Circuit, UVLO |
| Load Type | Inductive, Capacitive, Resistive |
