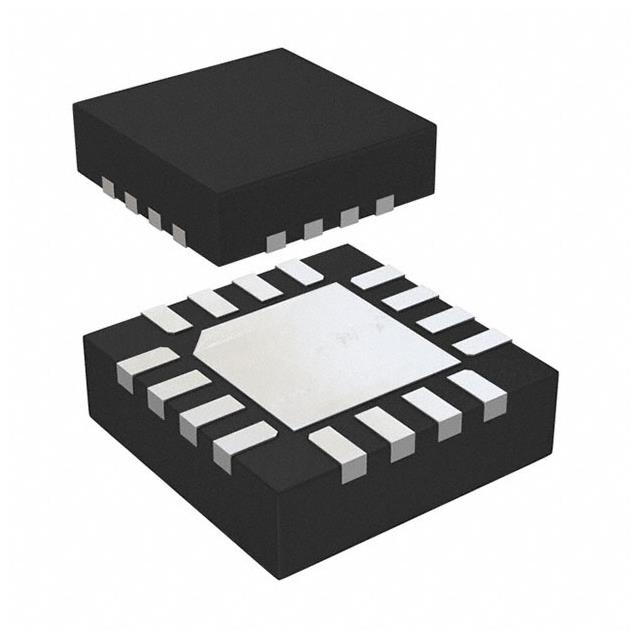

STSPIN230
IC HALF BRIDGE DRV 1.3A 16VFQFPNManufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
STMicroelectronics STSPIN2, a full half-bridge driver, part number STSPIN230, is designed for driving DC motors and general-purpose applications. This device features a 1.3A output current capability per channel and a low Rds(on) of 400mOhm (LS + HS), utilizing Power MOSFET technology. The STSPIN230 includes robust fault protection mechanisms, such as current limiting, over-temperature, and short-circuit protection, ensuring operational reliability. It operates with a load voltage range of 1.8V to 10V and a supply voltage of 0V to 5V. The component is housed in a compact 16-VFQFPN (3x3) exposed pad package, suitable for surface mounting. Its interface is logic-level compatible, and it is optimized for inductive loads. This driver is commonly employed in industrial automation, consumer electronics, and automotive systems requiring precise motor control. The STSPIN230 is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: STSPIN2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 0V ~ 5V |
| Rds On (Typ) | 400mOhm LS + HS |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | 1.3A |
| Current - Peak Output | - |
| Technology | Power MOSFET |
| Voltage - Load | 1.8V ~ 10V |
| Supplier Device Package | 16-VFQFPN (3x3) |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit |
| Load Type | Inductive |
