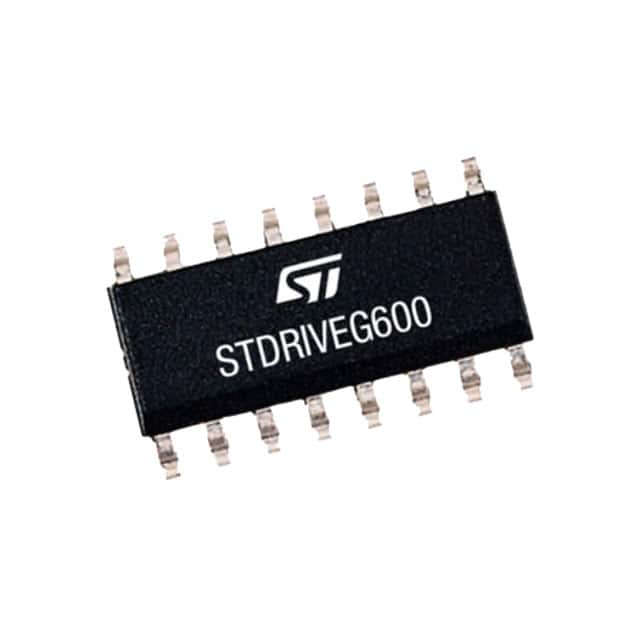

STDRIVEG600
IC HALF BRIDGE DRVR 5.5A/6A 16SOManufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Half Bridge Driver DC-DC Converters Power MOSFET 16-SO
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 3.3V ~ 5V |
| Rds On (Typ) | - |
| Applications | DC-DC Converters |
| Current - Output / Channel | 5.5A, 6A |
| Current - Peak Output | 5.5A, 6A |
| Technology | Power MOSFET |
| Voltage - Load | - |
| Supplier Device Package | 16-SO |
| Fault Protection | Over Temperature, UVLO |
| Load Type | Inductive, Capacitive, Resistive |
