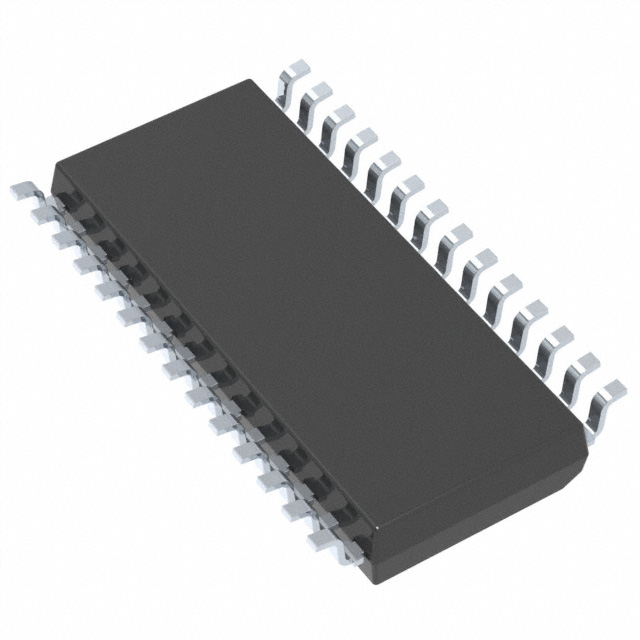

STDRIVE601
IC HALF BRIDGE DRIVER 28SOManufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Half Bridge (3) Driver DC Motors, General Purpose Power MOSFET, IGBT 28-SO
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Tray |
| Package / Case | 28-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Interface | Analog, Logic |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 9V ~ 20V |
| Rds On (Typ) | 35Ohm |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | - |
| Current - Peak Output | 350mA |
| Technology | Power MOSFET, IGBT |
| Voltage - Load | - |
| Supplier Device Package | 28-SO |
| Fault Protection | Over Current, Over Temperature, UVLO |
| Load Type | Capacitive and Resistive |
Request a Quote
