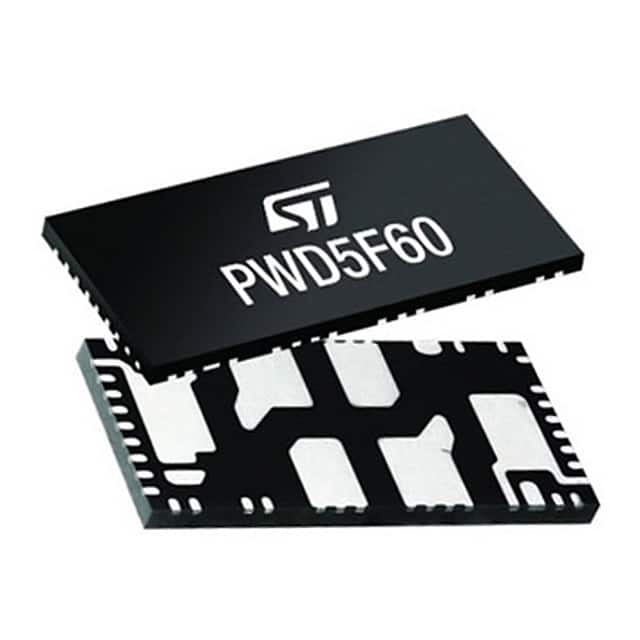

PWD5F60TR
IC HALF BRIDGE DRV 3.5A 46VFQFPNManufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The STMicroelectronics PWD5F60TR is a Half Bridge Driver designed for industrial applications. This component, part of the Full Half-Bridge (H Bridge) Drivers category, features a 3.5A continuous output current per channel and a peak output current of 14A. It operates with a supply voltage range of 10V to 20V and is built using Power MOSFET technology. The device includes Under-Voltage Lockout (UVLO) for fault protection. Its interface is logic-level compatible, and it is optimized for driving inductive loads. The PWD5F60TR is supplied in a 46-VFQFPN (15x7) package, suitable for surface mounting, and comes in Tape & Reel (TR) packaging. The typical on-resistance (Rds On) is 1.38 Ohm. Operating temperatures range from -40°C to 125°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 46-PowerVQFN |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 10V ~ 20V |
| Rds On (Typ) | 1.38Ohm |
| Applications | Industrial |
| Current - Output / Channel | 3.5A |
| Current - Peak Output | 14A |
| Technology | Power MOSFET |
| Voltage - Load | - |
| Supplier Device Package | 46-VFQFPN (15x7) |
| Fault Protection | UVLO |
| Load Type | Inductive |
