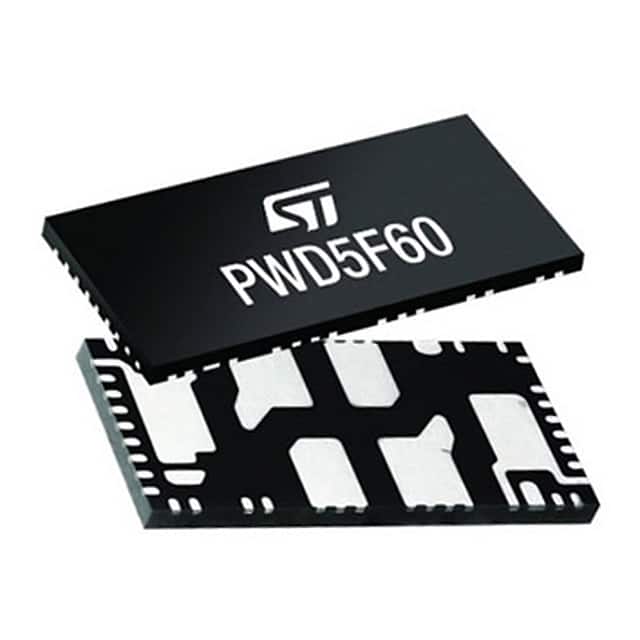

PWD5F60
IC HALF BRIDGE DRV 3.5A 46VFQFPNManufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
STMicroelectronics PWD5F60 is a robust half-bridge driver designed for demanding industrial applications. This component features a current output of 3.5A per channel, with a peak output capability of 14A, making it suitable for driving power MOSFETs in high-power switching circuits. The device operates from a supply voltage range of 10V to 20V and incorporates Under-Voltage Lockout (UVLO) for fault protection. Its half-bridge output configuration and surface mount capability, within a 46-VFQFPN (15x7) package, facilitate efficient board integration. Engineered with Power MOSFET technology, the PWD5F60 exhibits a typical ON-resistance of 1.38 Ohms, optimizing conduction losses. The operating temperature range of -40°C to 125°C ensures reliable performance in challenging environments. This driver is a key component in industrial power conversion systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 46-PowerVQFN |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 10V ~ 20V |
| Rds On (Typ) | 1.38Ohm |
| Applications | Industrial |
| Current - Output / Channel | 3.5A |
| Current - Peak Output | 14A |
| Technology | Power MOSFET |
| Voltage - Load | - |
| Supplier Device Package | 46-VFQFPN (15x7) |
| Fault Protection | UVLO |
| Load Type | Inductive |
