L99UDL01TR

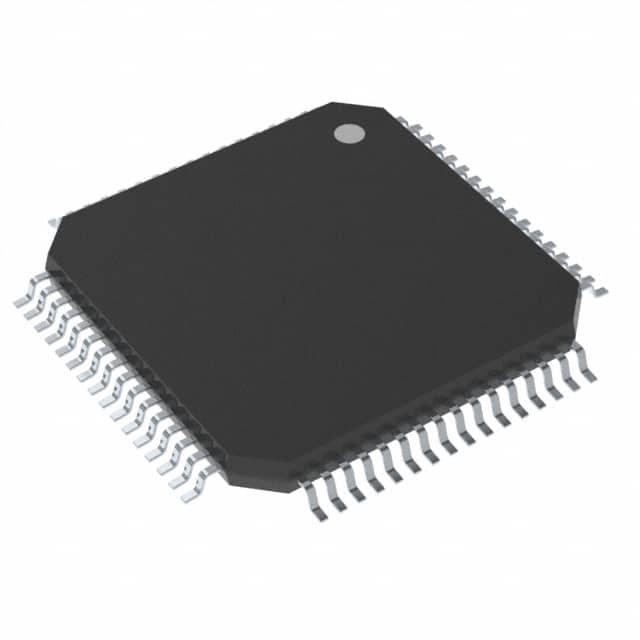

IC HALF BRIDGE DRIVER 64TQFPManufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
STMicroelectronics L99UDL01TR, a Half Bridge Driver, is designed for general-purpose applications. This AEC-Q100 qualified component features a 64-TQFP (10x10) exposed pad package, suitable for surface mount integration. The driver supports load voltages from 6V to 18V with a supply voltage range also from 6V to 18V. It offers robust fault protection including over current and over temperature safeguards. Key features include an integrated charge pump for gate drive, status flag reporting, and a PWM interface for control. The L99UDL01TR is engineered for capacitive and resistive loads, with typical Rds(on) of 90mOhm for both low-side (LS) and high-side (HS) MOSFETs. Operating across an extended temperature range of -40°C to 175°C (TJ), this device is well-suited for demanding automotive environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Charge Pump, Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | Logic, PWM, SPI |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Output Configuration | Half Bridge (6) |
| Voltage - Supply | 6V ~ 18V |
| Rds On (Typ) | 90mOhm LS + HS |
| Applications | General Purpose |
| Current - Output / Channel | - |
| Current - Peak Output | - |
| Technology | MOSFET (Metal Oxide) |
| Voltage - Load | 6V ~ 18V |
| Supplier Device Package | 64-TQFP (10x10) |
| Fault Protection | Over Current, Over Temperature |
| Load Type | Capacitive and Resistive |
| Grade | Automotive |
| Qualification | AEC-Q100 |
