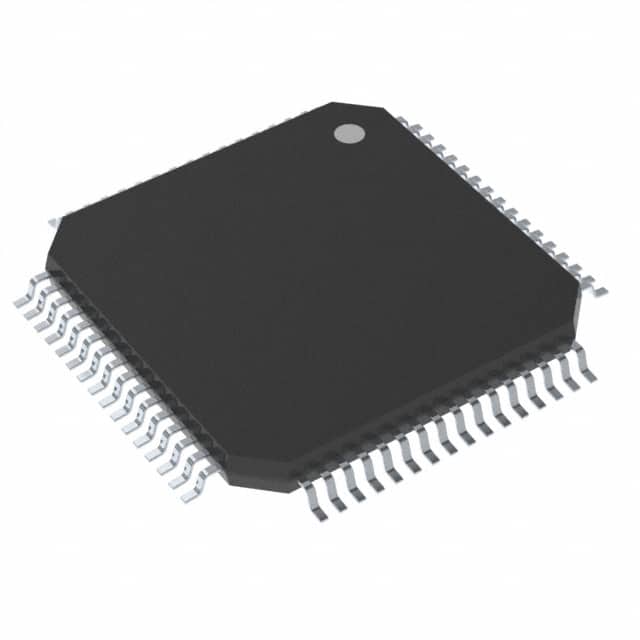

L99UDL01
IC HALF BRIDGE DRIVER 64TQFPManufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Half Bridge (6) Driver General Purpose MOSFET (Metal Oxide) 64-TQFP (10x10)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Charge Pump, Status Flag |
| Packaging | Tray |
| Package / Case | 64-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | Logic, PWM, SPI |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Output Configuration | Half Bridge (6) |
| Voltage - Supply | 6V ~ 18V |
| Rds On (Typ) | 90mOhm LS + HS |
| Applications | General Purpose |
| Current - Output / Channel | - |
| Current - Peak Output | - |
| Technology | MOSFET (Metal Oxide) |
| Voltage - Load | 6V ~ 18V |
| Supplier Device Package | 64-TQFP (10x10) |
| Fault Protection | Over Current, Over Temperature |
| Load Type | Capacitive and Resistive |
| Grade | Automotive |
| Qualification | AEC-Q100 |
