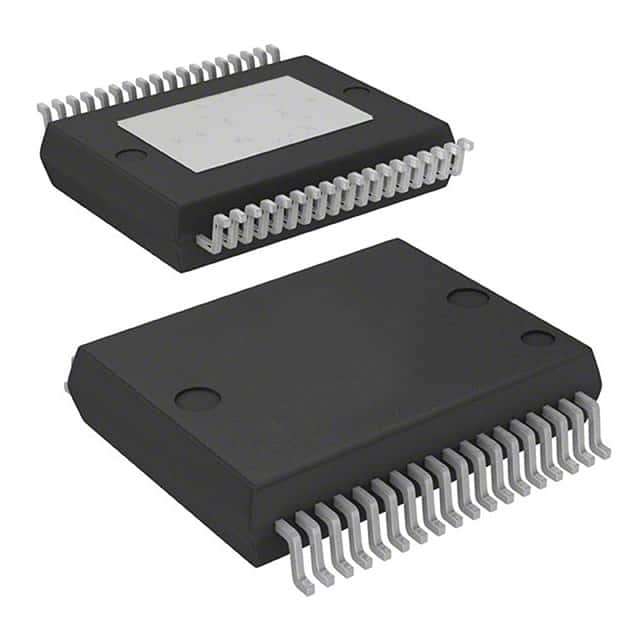

L99SD01TR-E
IC HALF BRIDGE DRVR 14A PWRSSO36Manufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
STMicroelectronics L99SD01TR-E is a Half Bridge Driver designed for solenoid applications. This Power MOSFET device, housed in a 36-PowerBFSOP (0.295", 7.50mm Width) package, delivers up to 14A output current per channel. Key features include robust fault protection mechanisms such as current limiting, open load detection, over-temperature, over-voltage, and UVLO. The device offers an I2C and PWM interface for control and includes a status flag for monitoring. Operating within a voltage range of 6V to 28V, it supports inductive loads and operates across a wide temperature range of -40°C to 150°C (TJ). Typical Rds(on) is 150mOhm for both low-side (LS) and high-side (HS) channels. This component is widely utilized in automotive and industrial automation sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-PowerBFSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Interface | I2C, PWM |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 6V ~ 28V |
| Rds On (Typ) | 150mOhm LS (Max), 150mOhm HS (Max) |
| Applications | Solenoids |
| Current - Output / Channel | 14A |
| Current - Peak Output | - |
| Technology | Power MOSFET |
| Voltage - Load | 45V (Max) |
| Supplier Device Package | PowerSSO-36 EPD |
| Fault Protection | Current Limiting, Open Load Detect, Over Temperature, Over Voltage, UVLO |
| Load Type | Inductive |
