L9960TR
IC HALF BRIDGE DRIVER PWRSSO36Manufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More

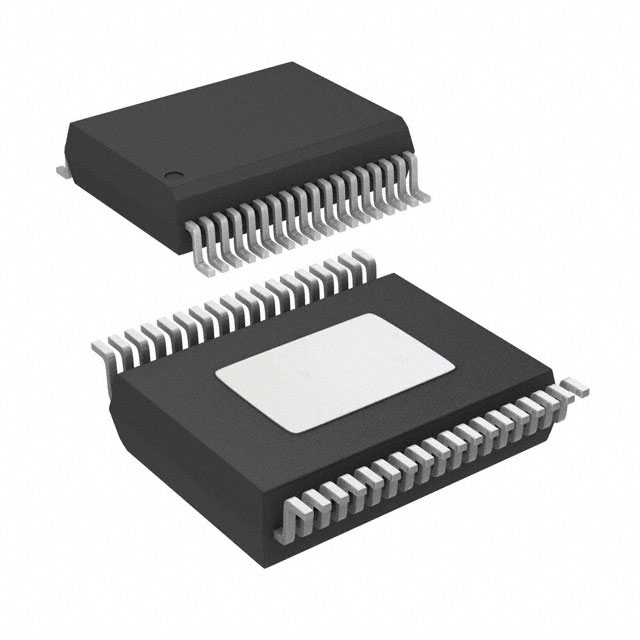

The STMicroelectronics L9960TR is a half-bridge driver designed for general-purpose power applications. This component, housed in a PowerSSO-36 EPD package, features two output configurations forming a half-bridge. It is qualified to AEC-Q100 and operates within an automotive grade temperature range of -40°C to 170°C (TJ). The L9960TR supports a load voltage range of 4.5V to 28V and a supply voltage of 4.5V to 5.5V. Integrated slew rate control and fault protection mechanisms, including over-temperature and short-circuit protection, enhance its robustness. The device interfaces via SPI and is suitable for driving inductive, capacitive, and resistive loads. Typical Rds On values for both low-side and high-side channels are 400mOhm. This component is commonly utilized in automotive systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-PowerBFSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Interface | SPI |
| Operating Temperature | -40°C ~ 170°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Rds On (Typ) | 400mOhm LS + HS |
| Applications | General Purpose |
| Current - Output / Channel | - |
| Current - Peak Output | - |
| Technology | Power MOSFET |
| Voltage - Load | 4.5V ~ 28V |
| Supplier Device Package | PowerSSO-36 EPD |
| Fault Protection | Over Temperature, Short Circuit |
| Load Type | Inductive, Capacitive, Resistive |
| Grade | Automotive |
| Qualification | AEC-Q100 |
