L9959S-TR-D

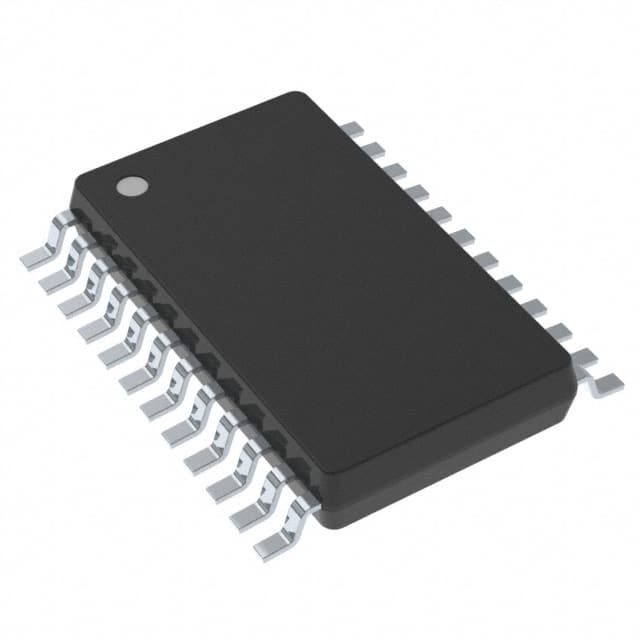

IC HALF BRIDGE DRVR 3A PWRSSO-24Manufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The STMicroelectronics L9959S-TR-D is a half-bridge driver designed for general-purpose applications. This component utilizes PMOS technology and is housed in a PowerSSO-24 package, supplied on tape and reel. It features two half-bridge output configurations, capable of delivering 3A of continuous output current per channel, with the ability to drive inductive, capacitive, and resistive loads. The device includes integrated fault protection mechanisms for over-temperature and short-circuit conditions. Communication and control are managed via an SPI interface. Operating across a wide temperature range of -40°C to 150°C (TJ), the L9959S-TR-D is suitable for load voltages from 5V to 28V and operates from a supply voltage of 4.5V to 5.5V. This driver is commonly employed in automotive and industrial control systems requiring efficient power management for motor driving and other power switching applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-PowerBSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Interface | SPI |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Rds On (Typ) | - |
| Applications | General Purpose |
| Current - Output / Channel | 3A |
| Current - Peak Output | - |
| Technology | PMOS |
| Voltage - Load | 5V ~ 28V |
| Supplier Device Package | PowerSSO-24 |
| Fault Protection | Over Temperature, Short Circuit |
| Load Type | Inductive, Capacitive, Resistive |
