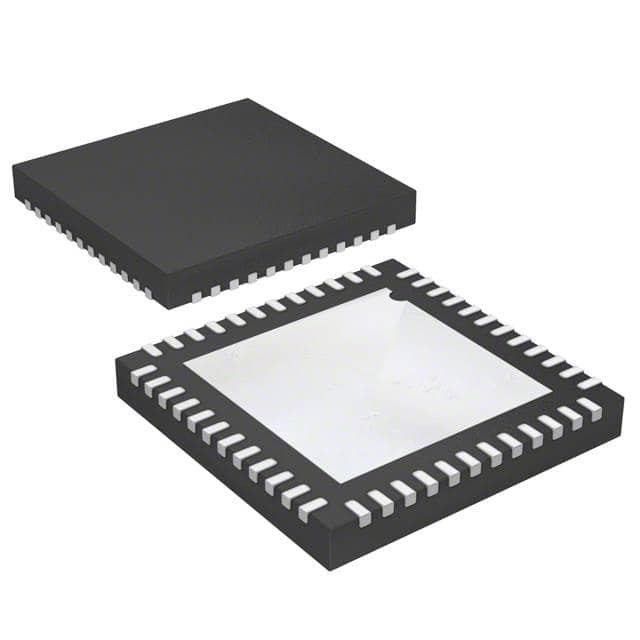

L6207QTR
IC HALF BRIDGE DRV 2.5A 48VFQFPNManufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The STMicroelectronics L6207QTR is a DMOS Half Bridge Driver designed for demanding applications. This device offers a robust solution for driving DC motors, stepper motors, and voltage regulators, supporting a voltage range of 8V to 52V. Each half-bridge channel delivers a continuous output current of 2.5A, with a peak output capability of 5.6A, suitable for inductive loads. The L6207QTR features integrated fault protection, including current limiting, over-temperature shutdown, and undervoltage lockout (UVLO), enhancing system reliability. Its design incorporates a bootstrap circuit for high-side driver operation. The component is housed in a 48-VFQFPN (7x7) package with exposed pad, suitable for surface mounting and supplied on tape and reel. Typical on-resistance for the low-side (LS) FET is 280mOhm, and for the high-side (HS) FET is 340mOhm. This component is utilized across various industries requiring precise motor control and power management.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 8V ~ 52V |
| Rds On (Typ) | 280mOhm LS, 340mOhm HS |
| Applications | DC Motors, Stepper Motors, Voltage Regulators |
| Current - Output / Channel | 2.5A |
| Current - Peak Output | 5.6A |
| Technology | DMOS |
| Voltage - Load | 8V ~ 52V |
| Supplier Device Package | 48-VFQFPN (7x7) |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Load Type | Inductive |
