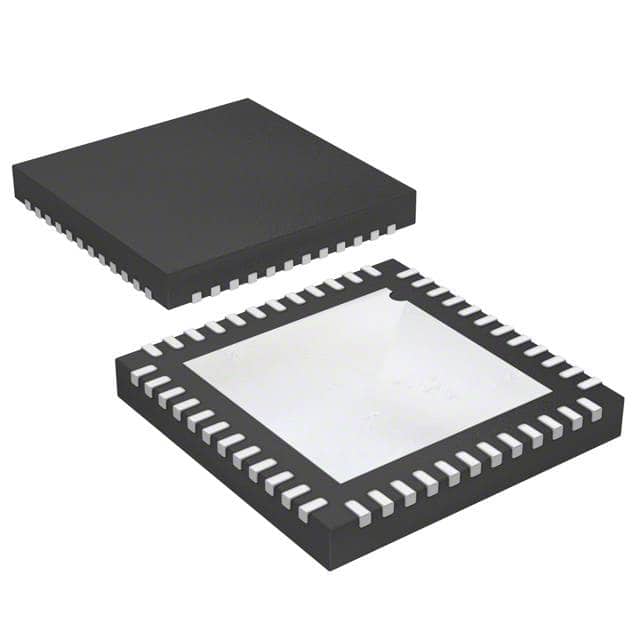

L6207Q
IC HALF BRIDGE DRV 2.5A 48VFQFPNManufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
STMicroelectronics L6207Q is a high-performance DMOS half-bridge driver designed for demanding motor control applications. This component features a robust output stage capable of delivering 2.5A continuous current and a peak current of 5.6A, suitable for driving DC and stepper motors. The L6207Q integrates essential fault protection mechanisms including current limiting, over-temperature shutdown, and undervoltage lockout (UVLO) to ensure reliable operation. Its advanced design includes a bootstrap circuit for efficient high-side driving. The L6207Q is housed in a 48-VFQFPN (7x7) surface mount package, facilitating compact board layouts. Typical on-resistance values are 280mOhm for the low-side and 340mOhm for the high-side driver channels. This device operates within a voltage range of 8V to 52V and is rated for an operating temperature of -25°C to 125°C. Applications span across industrial automation, automotive systems, and power management where precise motor control and robust protection are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Tray |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 8V ~ 52V |
| Rds On (Typ) | 280mOhm LS, 340mOhm HS |
| Applications | DC Motors, Stepper Motors, Voltage Regulators |
| Current - Output / Channel | 2.5A |
| Current - Peak Output | 5.6A |
| Technology | DMOS |
| Voltage - Load | 8V ~ 52V |
| Supplier Device Package | 48-VFQFPN (7x7) |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Load Type | Inductive |
