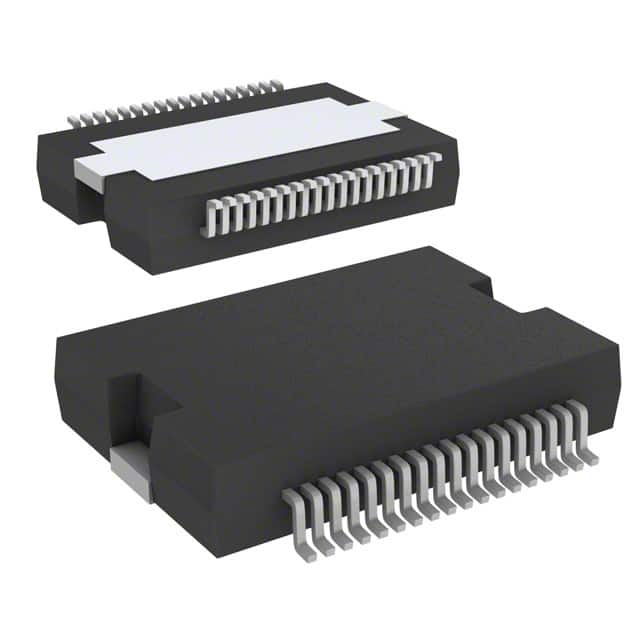

L6207PD013TR
IC HALF BRIDG DRV 2.8A 36POWERSOManufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The L6207PD013TR from STMicroelectronics is a DMOS half-bridge driver designed for demanding applications. This component is ideal for controlling DC motors and stepper motors, as well as in voltage regulator designs. Featuring a robust PowerSO-36 Slug Up package, it offers a peak output current of 5.6A and a continuous output of 2.8A per channel. The device incorporates fault protection mechanisms including current limiting, over-temperature shutdown, and undervoltage lockout (UVLO). Its design includes a bootstrap circuit for efficient high-side driver operation. With a low on-resistance of 300mOhm (typical), it minimizes power dissipation. The L6207PD013TR operates across a voltage range of 8V to 52V and is supplied in a Tape & Reel package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-PowerBSSOP (0.433"", 11.00mm Width) |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 8V ~ 52V |
| Rds On (Typ) | 300mOhm |
| Applications | DC Motors, Stepper Motors, Voltage Regulators |
| Current - Output / Channel | 2.8A |
| Current - Peak Output | 5.6A |
| Technology | DMOS |
| Voltage - Load | 8V ~ 52V |
| Supplier Device Package | PowerSO-36 Slug Up |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Load Type | Inductive |
