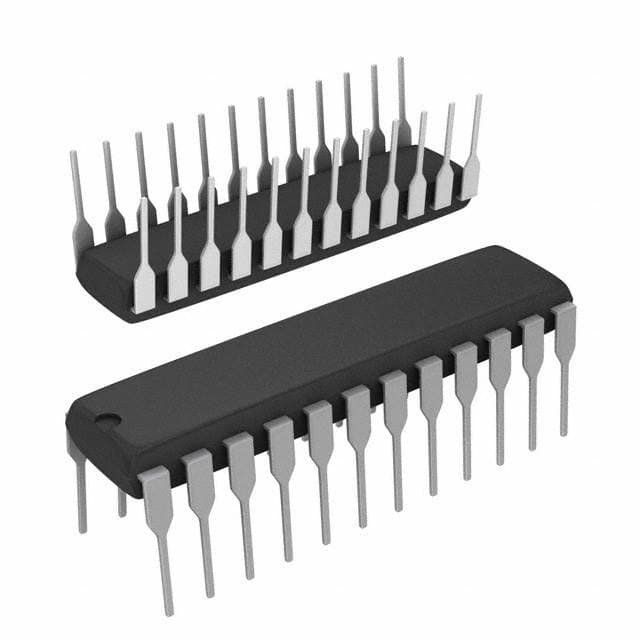

L6207N
IC HALF BRIDG DRV 2.8A 24PWRDIPManufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The STMicroelectronics L6207N is a high-performance half-bridge driver designed for demanding applications. This DMOS technology device facilitates efficient control of DC motors and stepper motors, as well as operation within voltage regulator circuits. It features a robust output stage capable of delivering 2.8A continuous current per channel, with peak current handling up to 5.6A. The L6207N incorporates essential fault protection mechanisms, including current limiting, over-temperature protection, and undervoltage lockout (UVLO), ensuring reliable operation. A bootstrap circuit simplifies driving the high-side MOSFETs. The device interfaces with standard logic levels and is configured for inductive loads. Supplied in a 24-PowerDIP package for through-hole mounting, it operates within a voltage range of 8V to 52V and an ambient temperature range of -25°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Tube |
| Package / Case | 24-PowerDIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Interface | Logic |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 8V ~ 52V |
| Rds On (Typ) | 300mOhm |
| Applications | DC Motors, Stepper Motors, Voltage Regulators |
| Current - Output / Channel | 2.8A |
| Current - Peak Output | 5.6A |
| Technology | DMOS |
| Voltage - Load | 8V ~ 52V |
| Supplier Device Package | 24-PowerDIP |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Load Type | Inductive |
