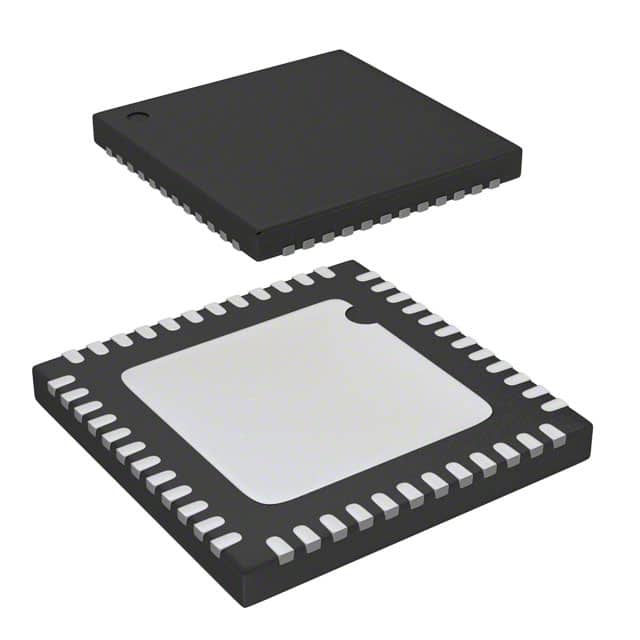

L6206QTR
IC HALF BRIDGE DRV 2.5A 48VFQFPNManufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
STMicroelectronics L6206QTR is a half-bridge driver featuring a BCDMOS technology for efficient power management. This component is designed to drive DC motors and stepper motors, and is also suitable for voltage regulator applications. It offers a continuous output current of 2.5A per channel, with a peak output capability of 5.6A. The L6206QTR incorporates essential fault protection features including current limiting, over-temperature protection, and undervoltage lockout (UVLO). Its half-bridge output configuration, coupled with a bootstrap circuit, supports inductive loads. The device operates across a voltage range of 8V to 52V for both supply and load. Packaged in a 48-VFQFPN (7x7) with exposed pad, the L6206QTR is suitable for surface mount applications. Typical on-resistance is 280mOhm for the low-side and 340mOhm for the high-side FETs. Operating temperature range is -25°C to 125°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 8V ~ 52V |
| Rds On (Typ) | 280mOhm LS, 340mOhm HS |
| Applications | DC Motors, Stepper Motors, Voltage Regulators |
| Current - Output / Channel | 2.5A |
| Current - Peak Output | 5.6A |
| Technology | BCDMOS |
| Voltage - Load | 8V ~ 52V |
| Supplier Device Package | 48-VFQFPN (7x7) |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Load Type | Inductive |
