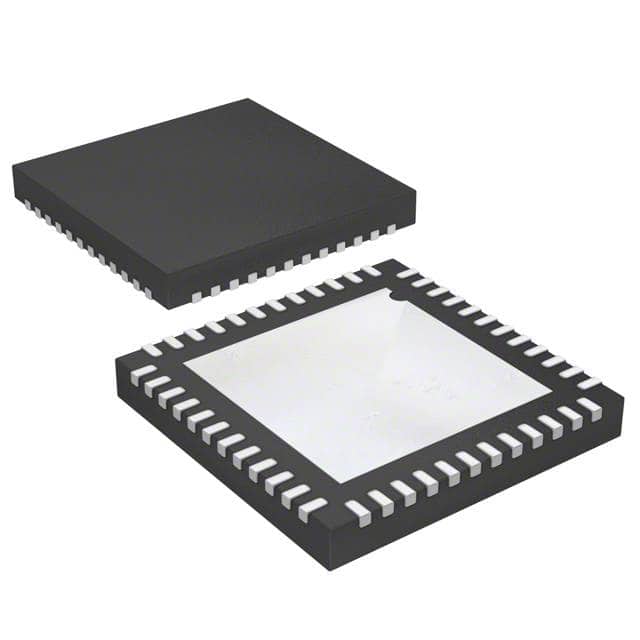

L6206Q
IC HALF BRIDGE DRV 2.5A 48VFQFPNManufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
STMicroelectronics L6206Q is a BCDMOS half-bridge driver designed for demanding motor control applications. This device supports dual DC motor control or stepper motor operation with integrated drive circuitry for two independent half-bridges. Each channel features a peak output current of 5.6A and a continuous output of 2.5A, with low on-resistance (280mOhm LS, 340mOhm HS typical). Fault protection mechanisms include current limiting, over-temperature shutdown, and under-voltage lockout (UVLO). The L6206Q utilizes a bootstrap circuit for high-side driver operation, simplifying design complexity. It is packaged in a 48-VFQFPN (7x7) with exposed pad for efficient thermal management, suitable for surface mounting. This component is commonly employed in automotive and industrial applications requiring precise control of DC and stepper motors, as well as in voltage regulator circuits. The operating temperature range is -25°C to 125°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Tray |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 8V ~ 52V |
| Rds On (Typ) | 280mOhm LS, 340mOhm HS |
| Applications | DC Motors, Stepper Motors, Voltage Regulators |
| Current - Output / Channel | 2.5A |
| Current - Peak Output | 5.6A |
| Technology | BCDMOS |
| Voltage - Load | 8V ~ 52V |
| Supplier Device Package | 48-VFQFPN (7x7) |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Load Type | Inductive |
