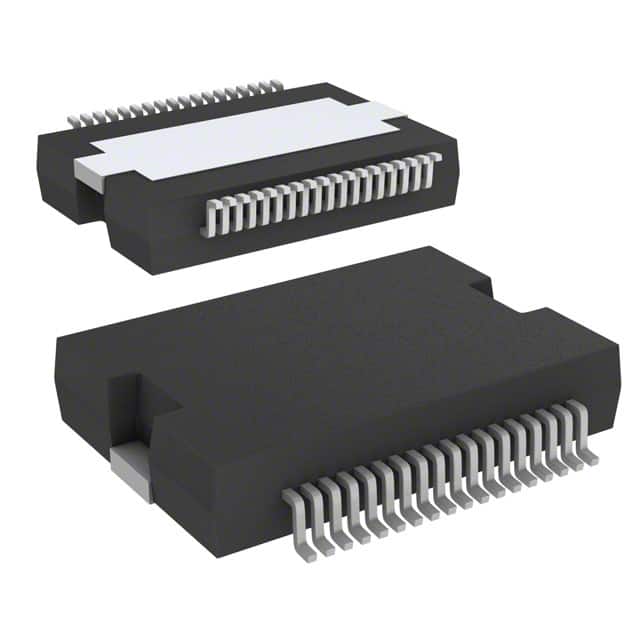

L6206PD013TR
IC HALF BRIDG DRV 2.8A 36POWERSOManufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
STMicroelectronics L6206PD013TR is a half-bridge driver designed for robust motor control applications. This BCDMOS device features an output current capability of 2.8A per channel, with peak currents reaching 5.6A, suitable for driving DC and stepper motors, as well as voltage regulators. The L6206PD013TR incorporates essential fault protection mechanisms including current limiting, over-temperature shutdown, and undervoltage lockout (UVLO). Its design benefits from a bootstrap circuit for high-side driver operation. The device offers a low on-resistance of 300mOhm (typ) and operates across a voltage range of 8V to 52V for both supply and load. Packaged in a surface-mount PowerSO-36 Slug Up (36-PowerBSSOP), this component is ideal for applications in automotive, industrial automation, and consumer electronics requiring precise motor actuation. The L6206PD013TR is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-PowerBSSOP (0.433"", 11.00mm Width) |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 8V ~ 52V |
| Rds On (Typ) | 300mOhm |
| Applications | DC Motors, Stepper Motors, Voltage Regulators |
| Current - Output / Channel | 2.8A |
| Current - Peak Output | 5.6A |
| Technology | BCDMOS |
| Voltage - Load | 8V ~ 52V |
| Supplier Device Package | PowerSO-36 Slug Up |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Load Type | Inductive |
