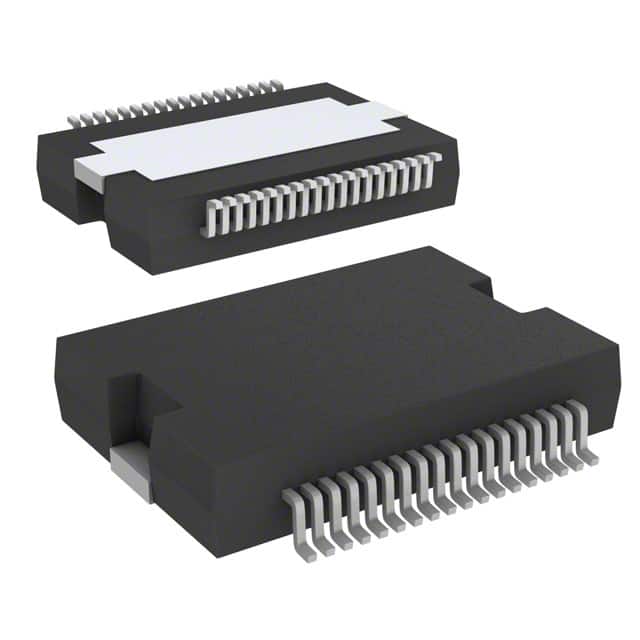

L6206PD
IC HALF BRIDG DRV 2.8A 36POWERSOManufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The STMicroelectronics L6206PD is a monolithic dual full-bridge driver IC designed for controlling DC and stepper motors, as well as for voltage regulator applications. This BCDMOS device features an integrated bootstrap circuit, enabling higher-side N-channel MOSFET operation. Each half-bridge output can deliver up to 2.8A continuous current, with peak currents reaching 5.6A. The L6206PD offers robust fault protection, including current limiting, over-temperature shutdown, and undervoltage lockout (UVLO). Its surface-mount PowerSO-36 Slug Up package (36-PowerBSSOP) is suitable for demanding industrial and automotive environments. Typical ON-resistance per channel is 300mOhm. The operating voltage range for both supply and load is 8V to 52V, with an operating junction temperature range of -25°C to 125°C. This component is commonly utilized in automation, robotics, and power management systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Tube |
| Package / Case | 36-PowerBSSOP (0.433"", 11.00mm Width) |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 8V ~ 52V |
| Rds On (Typ) | 300mOhm |
| Applications | DC Motors, Stepper Motors, Voltage Regulators |
| Current - Output / Channel | 2.8A |
| Current - Peak Output | 5.6A |
| Technology | BCDMOS |
| Voltage - Load | 8V ~ 52V |
| Supplier Device Package | PowerSO-36 Slug Up |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Load Type | Inductive |
