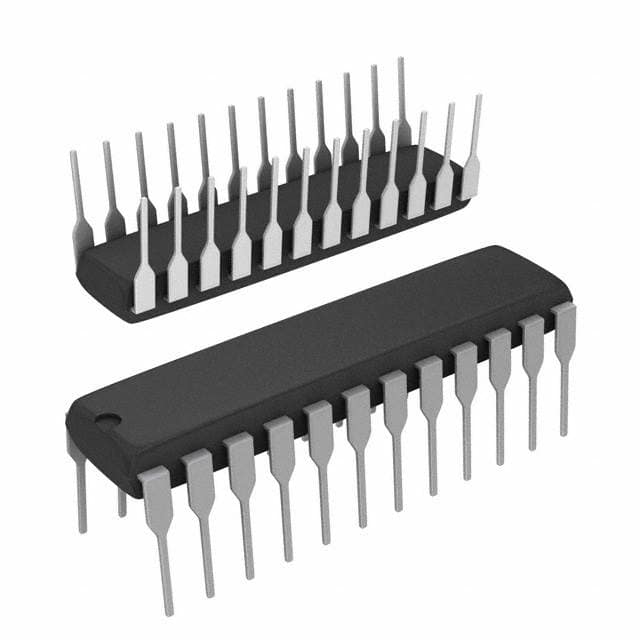

L6206N
IC HALF BRIDG DRV 2.8A 24PWRDIPManufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The STMicroelectronics L6206N is a high-power bipolar-CMOS-DMOS (BCD MOS) technology device designed for driving DC and stepper motors, as well as voltage regulators. This half-bridge driver offers a continuous output current of 2.8A per channel, with a peak current capability of 5.6A. Featuring integrated fault protection, including current limiting, over-temperature protection, and undervoltage lockout (UVLO), the L6206N ensures robust operation. Its design incorporates a bootstrap circuit for high-side driver implementation. The device operates across a voltage range of 8V to 52V and presents a low on-resistance of typically 300mOhm. Packaged in a 24-PowerDIP format suitable for through-hole mounting, the L6206N is engineered for applications demanding efficient motor control and power management, commonly found in industrial automation and automotive systems. Operating ambient temperature range is -25°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Tube |
| Package / Case | 24-PowerDIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Interface | Logic |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 8V ~ 52V |
| Rds On (Typ) | 300mOhm |
| Applications | DC Motors, Stepper Motors, Voltage Regulators |
| Current - Output / Channel | 2.8A |
| Current - Peak Output | 5.6A |
| Technology | BCDMOS |
| Voltage - Load | 8V ~ 52V |
| Supplier Device Package | 24-PowerDIP |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Load Type | Inductive |
