L6203
IC HALF BRIDGE DRV 4A 11MULTWATTManufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More

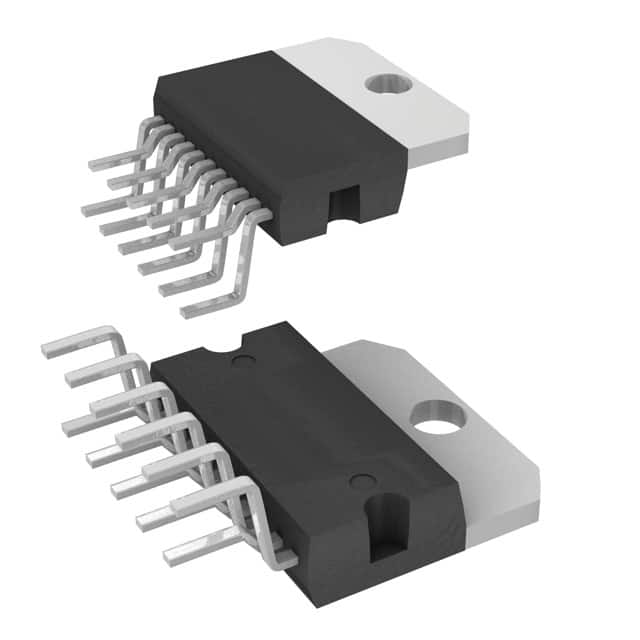

The STMicroelectronics L6203 is a high-side/low-side driver IC designed for controlling DC motors. This BCDMOS device features a half-bridge output configuration, capable of delivering up to 4A continuous current per channel with a typical Rds(On) of 300mOhm. The L6203 incorporates fault protection, including over-temperature shutdown, and a bootstrap circuit for efficient high-side driving. Its interface is logic-compatible, and it is designed to drive inductive loads. Operating across a voltage range of 12V to 48V, this component is suitable for applications in industrial automation, robotics, and automotive systems. The Multiwatt-11 package offers through-hole mounting with bent and staggered leads for robust assembly. It is supplied in tubes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Tube |
| Package / Case | Multiwatt-11 (Vertical, Bent and Staggered Leads) |
| Mounting Type | Through Hole |
| Interface | Logic |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 12V ~ 48V |
| Rds On (Typ) | 300mOhm |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | 4A |
| Current - Peak Output | - |
| Technology | BCDMOS |
| Voltage - Load | 12V ~ 48V |
| Supplier Device Package | 11-Multiwatt |
| Fault Protection | Over Temperature |
| Load Type | Inductive |
