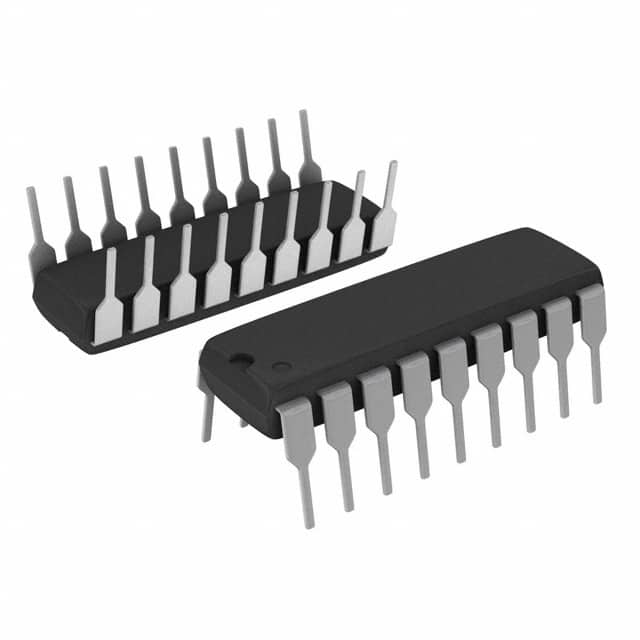

L6202
IC HALF BRIDG DRV 1.5A 18PWRDIPManufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
STMicroelectronics L6202 is a BCDMOS half-bridge driver designed for DC motor control and general-purpose applications. This device features two independent half-bridge output stages, capable of driving inductive loads such as DC motors. The L6202 provides an output current of 1.5A per channel and incorporates fault protection, including over-temperature shutdown. Its design includes a bootstrap circuit for high-side driver operation. The component operates from a supply voltage range of 12V to 48V, with a load voltage capability also within this range. The typical on-resistance (Rds On) is 300mOhm. This component is housed in an 18-PowerDIP package suitable for through-hole mounting and operates across an industrial temperature range of -40°C to 150°C (TJ). It is commonly found in automotive and industrial automation sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Tube |
| Package / Case | 18-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Interface | Logic |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 12V ~ 48V |
| Rds On (Typ) | 300mOhm |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | 1.5A |
| Current - Peak Output | - |
| Technology | BCDMOS |
| Voltage - Load | 12V ~ 48V |
| Supplier Device Package | 18-PowerDIP |
| Fault Protection | Over Temperature |
| Load Type | Inductive |
