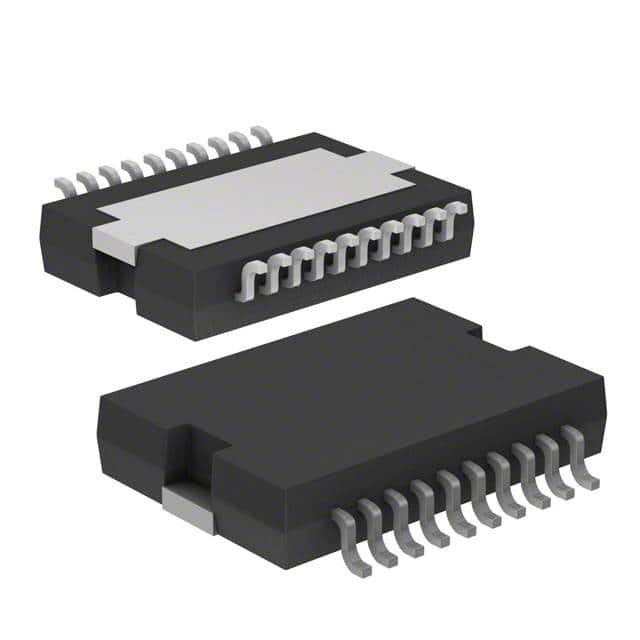

L6201PS
IC HALF BRIDGE DRV 4A POWERSO-20Manufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
STMicroelectronics L6201PS is a BCDMOS half-bridge driver designed for controlling DC motors and general-purpose applications. This device features two independent half-bridge output stages, each capable of delivering up to 4A continuous output current. The L6201PS operates with a supply voltage range of 12V to 48V, making it suitable for a wide spectrum of power requirements. Key features include built-in over-temperature protection, a bootstrap circuit for high-side drive, and an interface compatible with standard logic levels. The exposed pad on the 20-SOIC (PowerSO-20) package enhances thermal dissipation, with an operating temperature range of -40°C to 150°C (TJ). Its low on-resistance (typ. 300mOhm) minimizes power loss. This component is commonly utilized in industrial automation, automotive systems, and consumer electronics where efficient motor control is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Tube |
| Package / Case | 20-SOIC (0.433"", 11.00mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 12V ~ 48V |
| Rds On (Typ) | 300mOhm |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | 4A |
| Current - Peak Output | - |
| Technology | BCDMOS |
| Voltage - Load | 12V ~ 48V |
| Supplier Device Package | PowerSO-20 |
| Fault Protection | Over Temperature |
| Load Type | Inductive |
