L298P

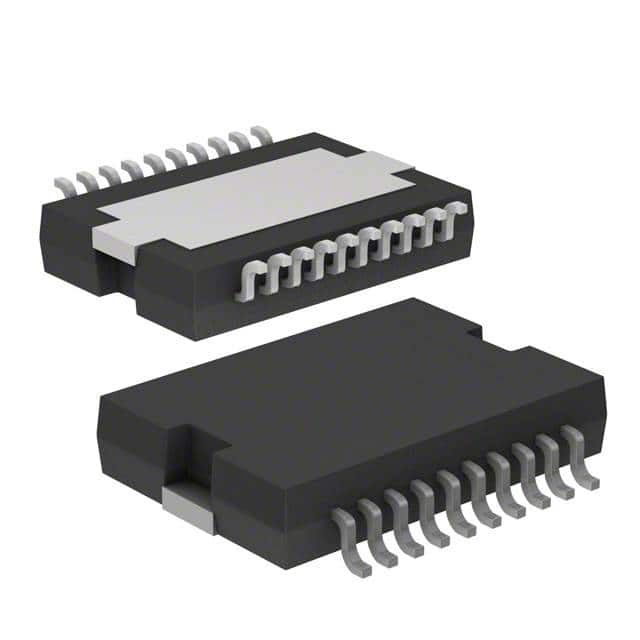

IC HALF BRIDGE DRIVER POWERSO-20Manufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The STMicroelectronics L298P is a monolithic integrated circuit in a PowerSO-20 Exposed Pad package, designed for driving DC motors, relays, solenoids, and stepper motors. This half-bridge driver operates with a supply voltage range of 4.5V to 7V, and can handle load voltages from 4.8V to 46V. It offers peak output current capability of 2A per channel. The L298P incorporates fault protection features including current limiting and over-temperature shutdown, ensuring robust operation. Its bipolar technology and surface mount configuration are suitable for demanding applications in industrial automation and consumer electronics. The interface is logic-level compatible.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 20-SOIC (0.433"", 11.00mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -25°C ~ 130°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 4.5V ~ 7V |
| Rds On (Typ) | - |
| Applications | DC Motors, Relays, Solenoids, Stepper Motors |
| Current - Output / Channel | - |
| Current - Peak Output | 2A |
| Technology | Bipolar |
| Voltage - Load | 4.8V ~ 46V |
| Supplier Device Package | PowerSO-20 |
| Fault Protection | Current Limiting, Over Temperature |
| Load Type | Inductive |
