L2293Q

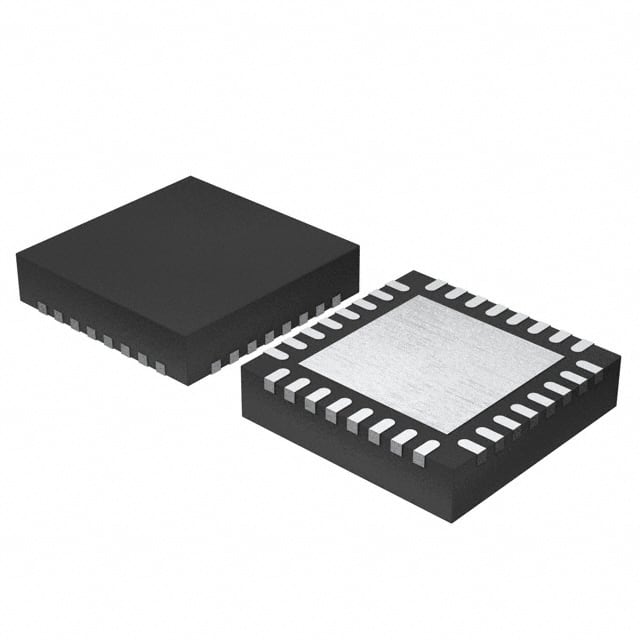

IC HALF BRIDG DRV 600MA 32VFQFPNManufacturer: STMicroelectronics
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
STMicroelectronics L2293Q is a half-bridge driver designed for controlling DC motors, relays, solenoids, and stepper motors. This device features an output current capability of 600mA per channel, with a peak output current of 1.2A. The L2293Q includes integrated over-temperature fault protection, ensuring robust operation in demanding environments. It operates with a supply voltage range of 2.8V to 36V, making it suitable for a wide array of applications. The component is housed in a 32-VFQFPN (5x5) package with an exposed pad, facilitating efficient heat dissipation and surface mount assembly. This driver is commonly found in industrial automation, automotive systems, and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 45 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 32-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -20°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 2.8V ~ 36V |
| Rds On (Typ) | - |
| Applications | DC Motors, Relays, Solenoids, Stepper Motors |
| Current - Output / Channel | 600mA |
| Current - Peak Output | 1.2A |
| Technology | - |
| Voltage - Load | 2.8V ~ 36V |
| Supplier Device Package | 32-VFQFPN (5x5) |
| Fault Protection | Over Temperature |
| Load Type | Inductive |
