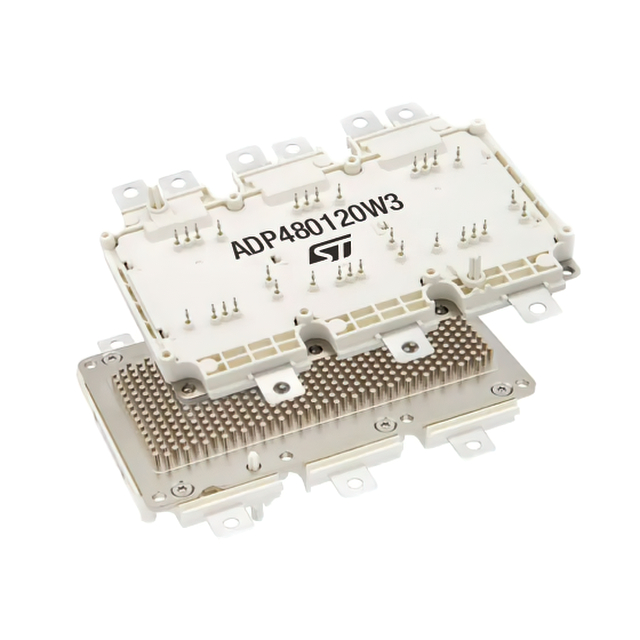

ADP480120W3
MOSFET 6N-CH 1200V 488A ACEPACKManufacturer: STMicroelectronics
Categories: FET, MOSFET Arrays
Quality Control: Learn More
STMicroelectronics ECOPACK® ADP480120W3 is a 6 N-channel Silicon Carbide (SiC) MOSFET array designed for high-power applications. This module features a 1200V (1.2kV) drain-to-source voltage (Vdss) and a continuous drain current of 488A (Tj) at 25°C. With a maximum power dissipation of 869W (Tj) and a low on-resistance of 2.6mOhm @ 480A, 18V, this device offers superior efficiency. The ADP480120W3 boasts a gate charge (Qg) of 1258nC @ 18V and an input capacitance (Ciss) of 37420pF @ 800V. Operating from -40°C to 175°C (TJ), it is suitable for demanding environments. The component is housed in an ACEPACK module package, designed for chassis mounting. This SiC MOSFET array is well-suited for use in electric vehicle charging, industrial motor drives, and renewable energy systems.
Additional Information
Series: ECOPACK®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 99 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Configuration | 6 N-Channel |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Technology | Silicon Carbide (SiC) |
| Power - Max | 869W (Tj) |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Current - Continuous Drain (Id) @ 25°C | 488A (Tj) |
| Input Capacitance (Ciss) (Max) @ Vds | 37420pF @ 800V |
| Rds On (Max) @ Id, Vgs | 2.6mOhm @ 480A, 18V |
| Gate Charge (Qg) (Max) @ Vgs | 1258nC @ 18V |
| FET Feature | Silicon Carbide (SiC) |
| Vgs(th) (Max) @ Id | 4.4V @ 50mA |
| Supplier Device Package | ACEPACK |
| Grade | - |
| Qualification | - |
