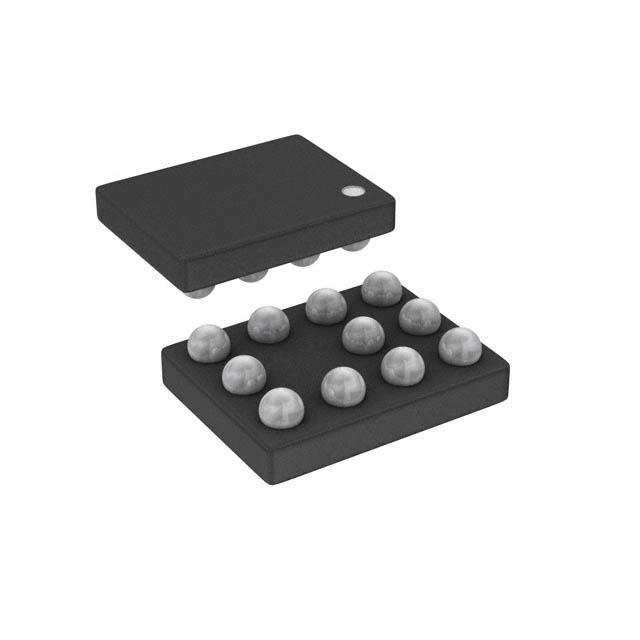

EMIF02-USB03F2
FILTER RC(PI) 33 OHM/20PF SMDManufacturer: STMicroelectronics
Categories: EMI/RFI Filters (LC, RC Networks)
Quality Control: Learn More
RC (Pi) EMI Filter 2nd Order Low Pass 2 Channel R = 33Ohms, C = 20pF 11-WFBGA, FCBGA
Additional Information
Series: IPAD™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | - |
| Package / Case | 11-WFBGA, FCBGA |
| Size / Dimension | 0.076"" L x 0.057"" W (1.94mm x 1.44mm) |
| Mounting Type | Surface Mount |
| Type | Low Pass |
| Operating Temperature | -40°C ~ 85°C |
| Values | R = 33Ohms, C = 20pF |
| Height | 0.028"" (0.70mm) |
| Attenuation Value | - |
| Filter Order | 2nd |
| Applications | USB |
| Technology | RC (Pi) |
| Center / Cutoff Frequency | - |
| Resistance - Channel (Ohms) | 33 |
| ESD Protection | Yes |
| Number of Channels | 2 |
