ST7540

IC TRANSCEIVER HALF 1/1 28HTSSOP

Categories: Drivers, Receivers, Transceivers

Quality Control: Learn More

STMicroelectronics ST7540 is a half-duplex transceiver designed for robust communication applications. This component features a 1/1 driver/receiver configuration and operates with supply voltages ranging from 5V to 9V. The ST7540 is housed in a 28-HTSSOP package with an exposed pad, facilitating efficient heat dissipation during operation. Its surface mount capability ensures seamless integration into compact PCB designs. This transceiver is well-suited for use in industrial automation, smart metering, and automotive control systems where reliable data transmission is critical. The operating temperature range is specified from -40°C to 85°C, ensuring performance across diverse environmental conditions.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: TubeDatasheet:

Download Free CAD Model:

Technical Details:

Packaging	Tube

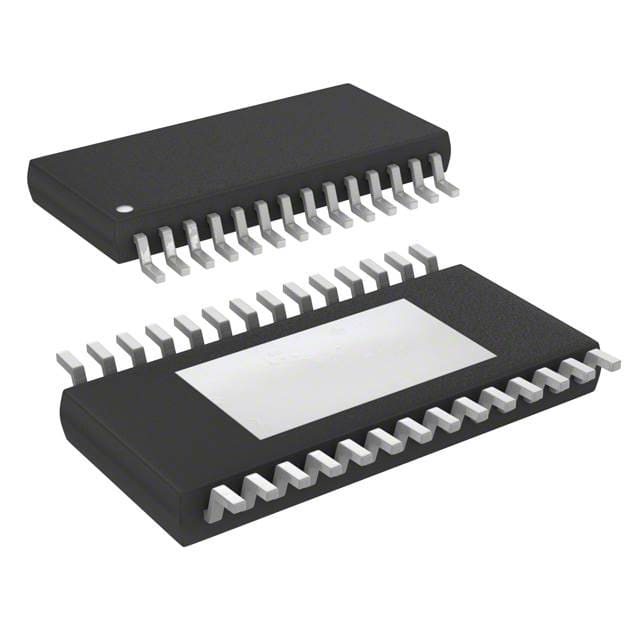

Package / Case	28-TSSOP (0.173"", 4.40mm Width) Exposed Pad
Mounting Type	Surface Mount
Type	Transceiver
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	5V ~ 9V
Number of Drivers/Receivers	1/1
Data Rate	-
Protocol	-
Supplier Device Package	28-HTSSOP
Duplex	Half
