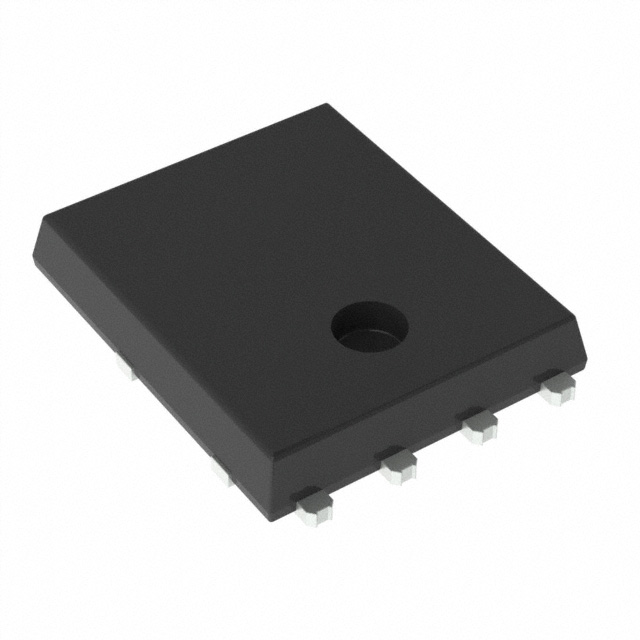

STTH8L02DDJFY-TR
DIODE ARRAY GP 200V 4A PWRFLATManufacturer: STMicroelectronics
Categories: Diode Arrays
Quality Control: Learn More
STMicroelectronics STTH8L02DDJFY-TR is a fast recovery diode array, part of the ECOPACK®2 series, featuring two independent diodes. Each diode is rated for a maximum DC reverse voltage of 200 V and an average rectified forward current of 4 A. The forward voltage drop at 8 A is a maximum of 1.1 V. This device exhibits a reverse leakage current of 3 µA at 200 V and a reverse recovery time of 40 ns. Designed for surface mount applications, it utilizes a wettable flank termination in an 8-PowerVDFN package, specifically the PowerFlat™ (5x6) Dual supplier device package. The STTH8L02DDJFY-TR is AEC-Q101 qualified and suitable for automotive applications, operating across a junction temperature range of -40°C to 175°C. The component is supplied in Tape & Reel packaging.
Additional Information
Series: ECOPACK®2RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount, Wettable Flank |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 40 ns |
| Technology | Standard |
| Diode Configuration | 2 Independent |
| Current - Average Rectified (Io) (per Diode) | 4A |
| Supplier Device Package | PowerFlat™ (5x6) Dual |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 8 A |
| Current - Reverse Leakage @ Vr | 3 µA @ 200 V |
| Qualification | AEC-Q101 |
