STTH60AC06CP
DIODE ARRAY GP 600V 30A TO3PManufacturer: STMicroelectronics
Categories: Diode Arrays
Quality Control: Learn More

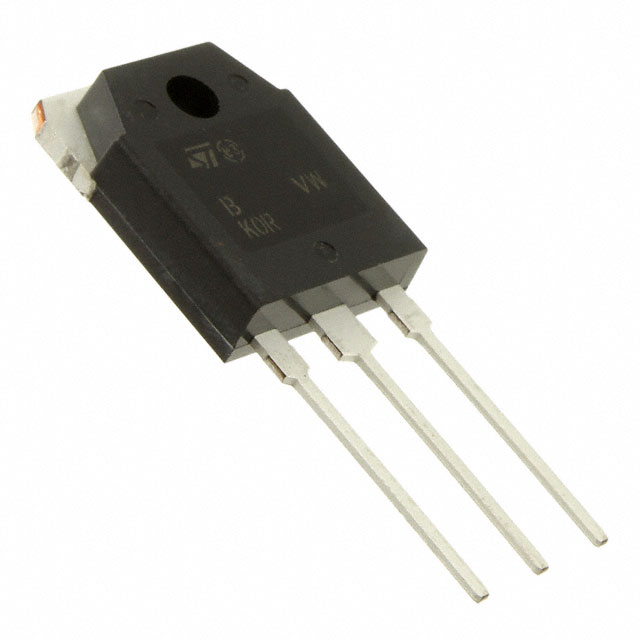

The STMicroelectronics STTH60AC06CP is a high-performance diode array featuring a common cathode configuration. This through-hole component, housed in a TO-3P-3 (SC-65-3) package, offers a maximum DC reverse voltage of 600V and an average rectified current of 30A per diode. With a fast recovery time of 40 ns and a forward voltage drop of 1.75V at 30A, it is designed for demanding applications. The reverse leakage current is a mere 10 µA at 600V, and it operates efficiently up to a junction temperature of 175°C. This device is commonly utilized in power supply rectification, industrial motor control, and automotive power systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-3P-3, SC-65-3 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 40 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 30A |
| Supplier Device Package | TO-3P |
| Operating Temperature - Junction | 175°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.75 V @ 30 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
