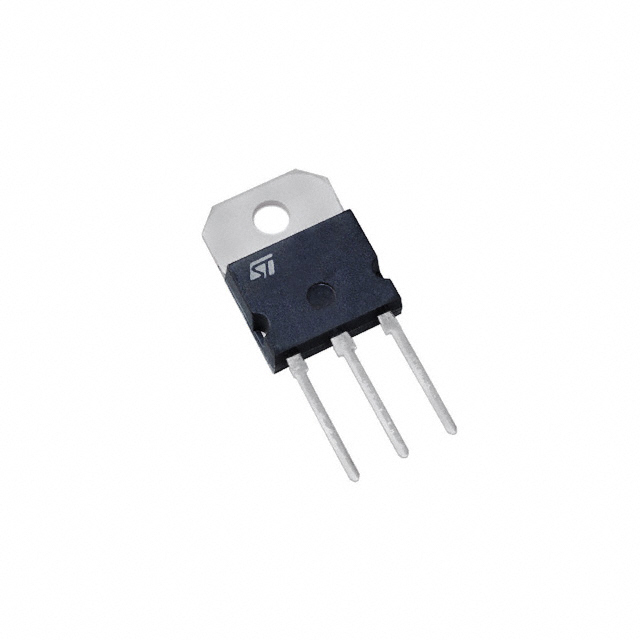

STPS4045CP
DIODE ARR SCHOTT 45V 20A SOT93Manufacturer: STMicroelectronics
Categories: Diode Arrays
Quality Control: Learn More
STMicroelectronics STPS4045CP is a Schottky diode array featuring a common cathode configuration. This component offers a maximum DC reverse voltage of 45V and a forward voltage of 760mV at 20A. Each diode within the array is rated for an average rectified current of 20A, with a typical reverse leakage of 200µA at 45V. The device operates at a maximum junction temperature of 175°C and is housed in a TO-218-3 (SOT-93) package, suitable for through-hole mounting. Its fast recovery characteristic, defined as <= 500ns, makes it appropriate for applications requiring efficient power rectification. This diode array finds utility in power supply units, automotive electronics, and industrial power conditioning systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-218-3 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 20A |
| Supplier Device Package | SOT-93 |
| Operating Temperature - Junction | 175°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Voltage - Forward (Vf) (Max) @ If | 760 mV @ 20 A |
| Current - Reverse Leakage @ Vr | 200 µA @ 45 V |
