STPS30H60CKY-TR
DIODE ARR SCHOTT 60V 15A POWERSOManufacturer: STMicroelectronics
Categories: Diode Arrays
Quality Control: Learn More

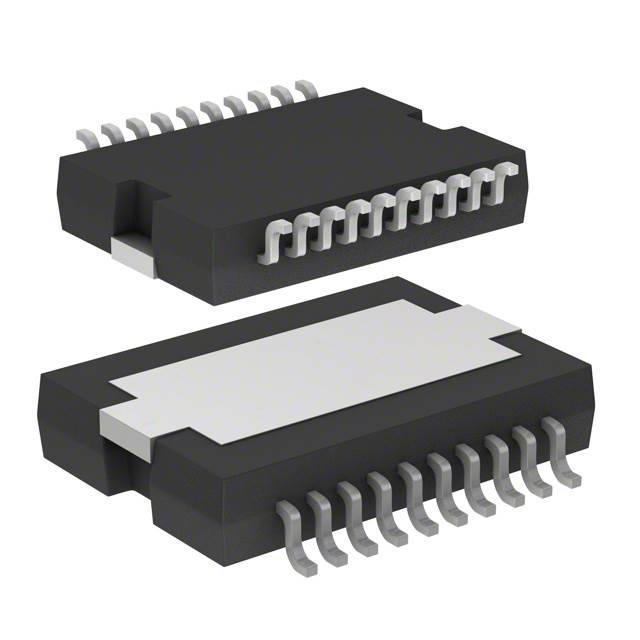

The STMicroelectronics STPS30H60CKY-TR is a dual Schottky diode array featuring a common cathode configuration. This component is rated for a maximum reverse voltage of 60V and offers an average rectified current of 15A per diode. Its forward voltage drop is a low 580mV at 15A, indicative of its Schottky technology. The device boasts a reverse leakage current of 150 µA at 60V. Designed for surface mounting, it is housed in a PowerSO-20 package with an exposed pad, specifically identified as 20-SOIC (0.433", 11.00mm Width). The STPS30H60CKY-TR is qualified to AEC-Q101 standards, making it suitable for automotive applications. It operates across a junction temperature range of -40°C to 150°C and is supplied on tape and reel. This diode array is commonly utilized in power supply rectification and voltage clamping circuits within the automotive and industrial sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 98 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.433"", 11.00mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 15A |
| Supplier Device Package | PowerSO-20 |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Voltage - Forward (Vf) (Max) @ If | 580 mV @ 15 A |
| Current - Reverse Leakage @ Vr | 150 µA @ 60 V |
| Qualification | AEC-Q101 |
