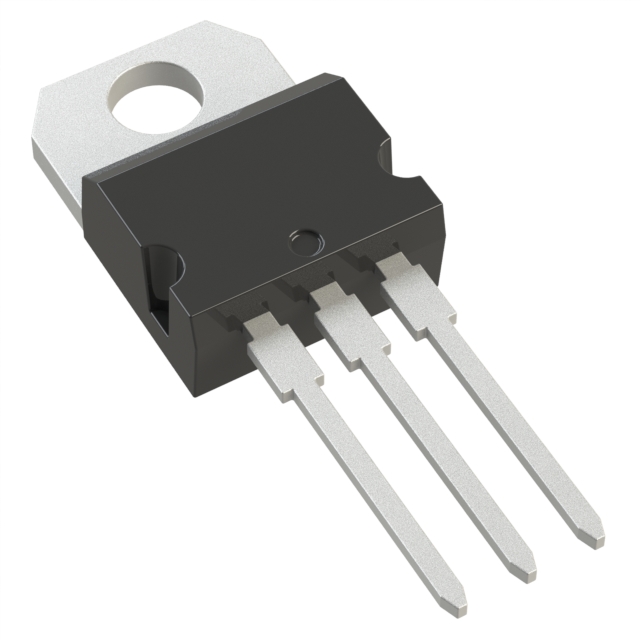

STPS30H100CTN
DIODE ARRAY SCHOTTKY 100V TO220Manufacturer: STMicroelectronics
Categories: Diode Arrays
Quality Control: Learn More
STMicroelectronics STPS30H100CTN is a Schottky diode array featuring a common cathode configuration. This through-hole component, housed in a TO-220-3 package, offers a maximum DC reverse voltage of 100V. Each diode in the array is rated for an average rectified current of 15A, with a typical forward voltage drop of 800mV at 15A. Reverse leakage current is specified at 5 µA at 100V. The device operates across a junction temperature range of -40°C to 175°C. This diode array is suitable for applications requiring efficient rectification and high current handling, commonly found in power supplies and automotive systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 15A |
| Supplier Device Package | TO-220AB Narrow Leads |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 15 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 100 V |
