STPS240H100TV1Y
DIODE MOD SCHOT 100V 120A ISOTOPManufacturer: STMicroelectronics
Categories: Diode Arrays
Quality Control: Learn More
Diode Array 2 Independent 100 V 120A Chassis Mount SOT-227-4, miniBLOC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | SOT-227-4, miniBLOC |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 2 Independent |
| Current - Average Rectified (Io) (per Diode) | 120A |
| Supplier Device Package | ISOTOP |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 825 mV @ 120 A |
| Current - Reverse Leakage @ Vr | 90 µA @ 100 V |
| Qualification | AEC-Q101 |
Request a Quote
Clients Also Buy
STPS10H100SFY
DIODE ARR SCHOTT 100V 10A TO277A

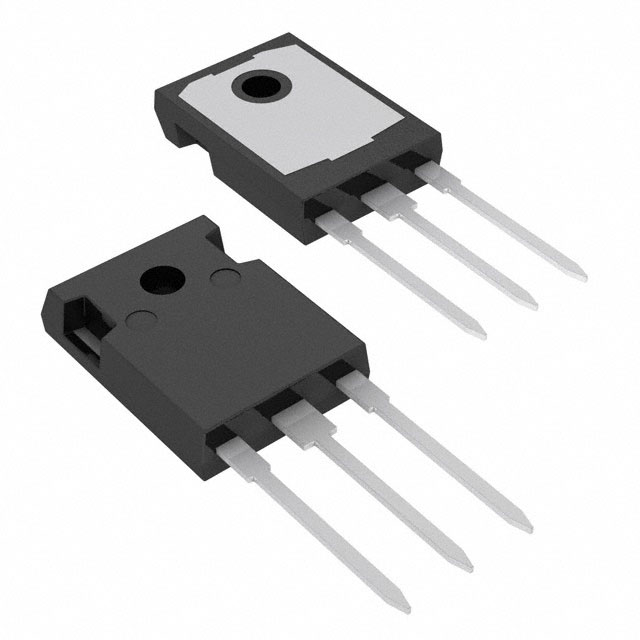

STPS6045CW
