STPS20150CG
DIODE ARR SCHOTT 150V 10A D2PAKManufacturer: STMicroelectronics
Categories: Diode Arrays
Quality Control: Learn More
STMicroelectronics STPS20150CG is a Schottky diode array featuring a common cathode configuration. This device offers a maximum reverse voltage of 150V and an average rectified current of 10A per diode. The forward voltage drop is specified at 920mV at 10A, with a low reverse leakage current of 5µA at 150V. Designed for surface mounting, it is housed in a TO-263-3, D2PAK package. The operating junction temperature reaches up to 175°C. This component is suitable for power supply applications, switch-mode power supplies, and high-frequency rectifiers across various industrial sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |

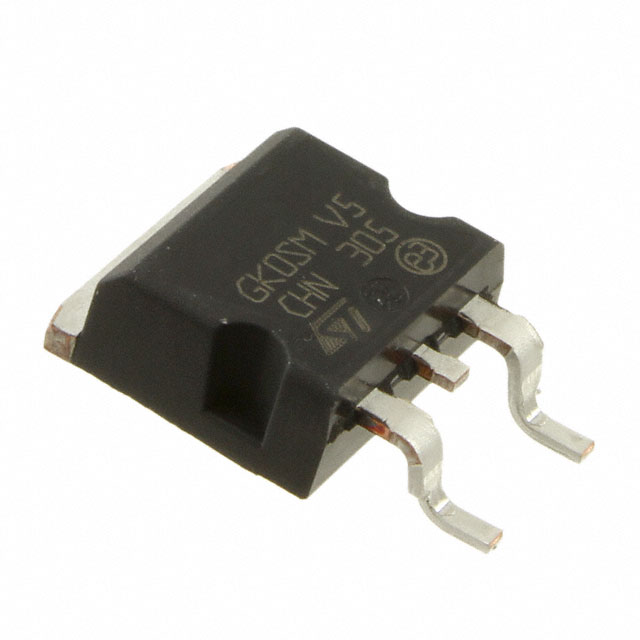

| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 10A |
| Supplier Device Package | D2PAK |
| Operating Temperature - Junction | 175°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 150 V |
| Voltage - Forward (Vf) (Max) @ If | 920 mV @ 10 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 150 V |
