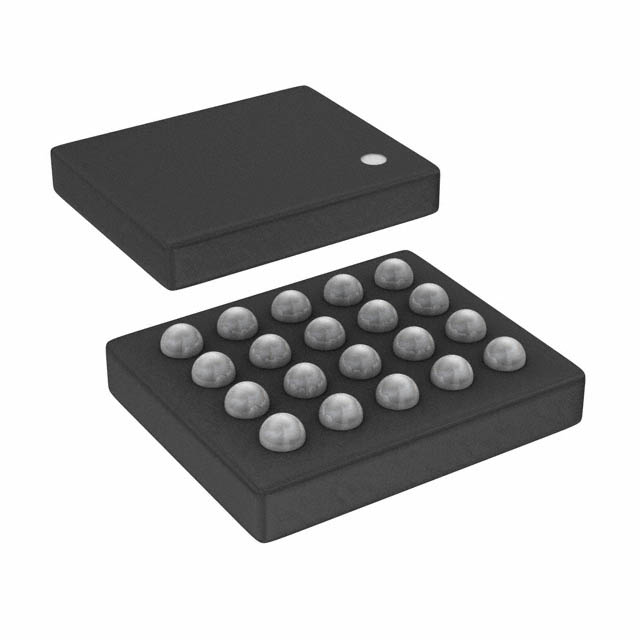

STBB2JAD-R
IC REG BCK BST ADJ 20FLIPCHIPManufacturer: STMicroelectronics
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck-Boost Switching Regulator IC Positive Adjustable 1.2V 1 Output 800mA 20-UFBGA, FCBGA
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-UFBGA, FCBGA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | 800mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 2.5MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck-Boost |
| Supplier Device Package | 20-Flip-Chip (2.1x1.8) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 4.5V |
| Voltage - Input (Min) | 2.4V |
| Voltage - Output (Min/Fixed) | 1.2V |
