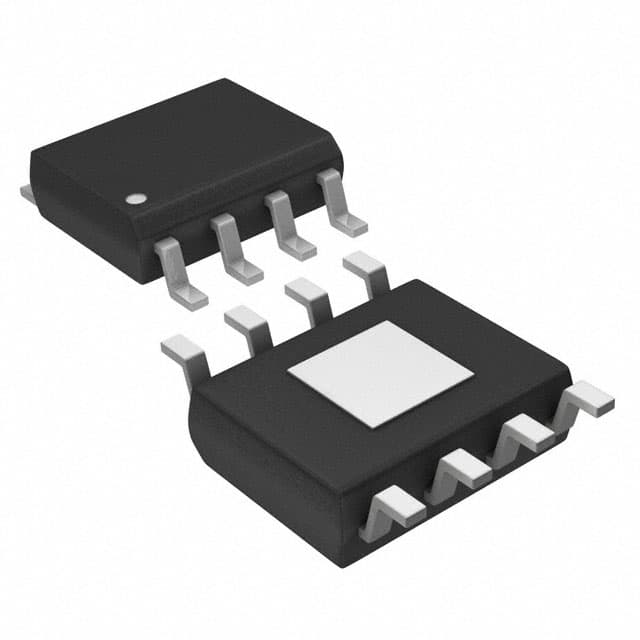

L5973D
IC REG BUCK ADJ 2.5A 8HSOPManufacturer: STMicroelectronics
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck Switching Regulator IC Positive Adjustable 1.235V 1 Output 2.5A 8-SOIC (0.154"", 3.90mm Width) Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 2.5A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 250kHz |
| Voltage - Input (Max) | 36V |
| Topology | Buck |
| Supplier Device Package | 8-HSOP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 35V |
| Voltage - Input (Min) | 4V |
| Voltage - Output (Min/Fixed) | 1.235V |
