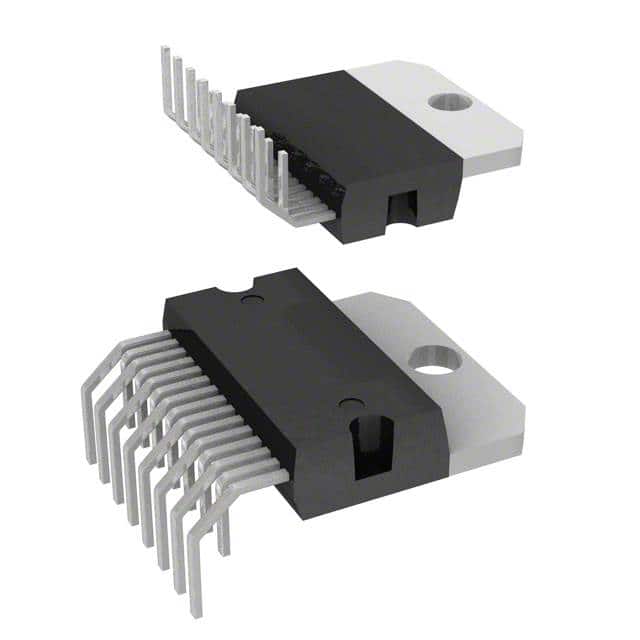

L296HT
IC REG BUCK ADJ 4A 15MULTIWATTManufacturer: STMicroelectronics
Categories: DC DC Switching Regulators
Quality Control: Learn More
The STMicroelectronics L296HT is a high-performance adjustable buck switching regulator designed for efficient power conversion. This device features a positive adjustable output voltage, capable of delivering up to 4A with a minimum fixed output of 5.1V and a maximum output of 40V. Operating with an input voltage range of 9V to 46V, the L296HT utilizes a non-synchronous buck topology and switches at a frequency of 100kHz, making it suitable for demanding applications. Its Multiwatt-15 package with horizontal, bent, and staggered leads facilitates robust through-hole mounting. The L296HT is engineered for reliable operation across an extended temperature range of -40°C to 150°C (TJ), finding utility in industrial automation, automotive systems, and telecommunications infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | Multiwatt-15 (Horizontal, Bent and Staggered Leads) |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 4A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz |
| Voltage - Input (Max) | 46V |
| Topology | Buck |
| Supplier Device Package | 15-Multiwatt |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 40V |
| Voltage - Input (Min) | 9V |
| Voltage - Output (Min/Fixed) | 5.1V |
