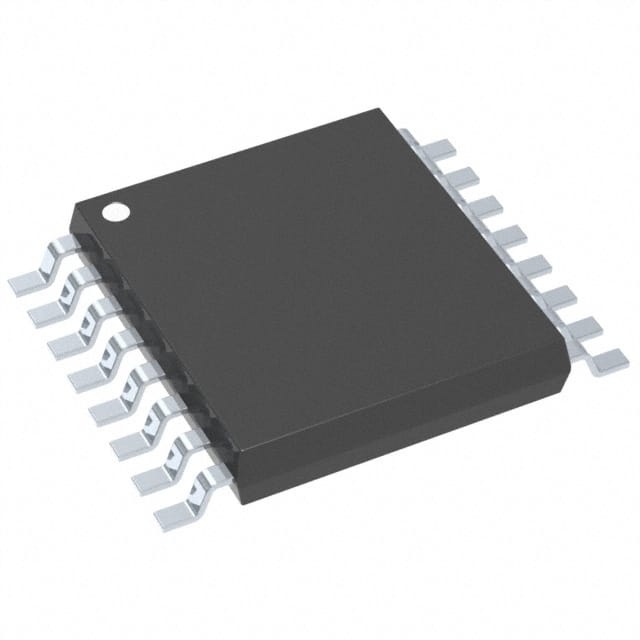

A6986HTR
IC REG BUCK ADJ 2A 16HTSSOPManufacturer: STMicroelectronics
Categories: DC DC Switching Regulators
Quality Control: Learn More
STMicroelectronics A6986HTR is a high-performance, automotive-grade buck switching regulator designed for efficient power conversion. This component facilitates step-down functionality with an adjustable positive output voltage range from 0.85V up to 38V. It supports a continuous output current of 2A and operates with a switching frequency adjustable between 250kHz and 2MHz, offering flexibility in design trade-offs between efficiency and component size. The regulator features an integrated synchronous rectifier for enhanced efficiency.
The A6986HTR is qualified to AEC-Q100 standards, making it suitable for demanding automotive applications. Its input voltage range spans from 4V to 38V. Packaged in a 16-PowerTSSOP (0.173", 4.40mm Width) for surface mounting, this device is supplied on tape and reel. The operating temperature range is -40°C to 150°C (TJ). This buck regulator is commonly found in automotive infotainment systems, advanced driver-assistance systems (ADAS), and other automotive power management solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-PowerTSSOP (0.173"", 4.40mm Width) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 250kHz ~ 2MHz |
| Voltage - Input (Max) | 38V |
| Topology | Buck |
| Supplier Device Package | 16-HTSSOP |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 38V |
| Voltage - Input (Min) | 4V |
| Voltage - Output (Min/Fixed) | 0.85V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
