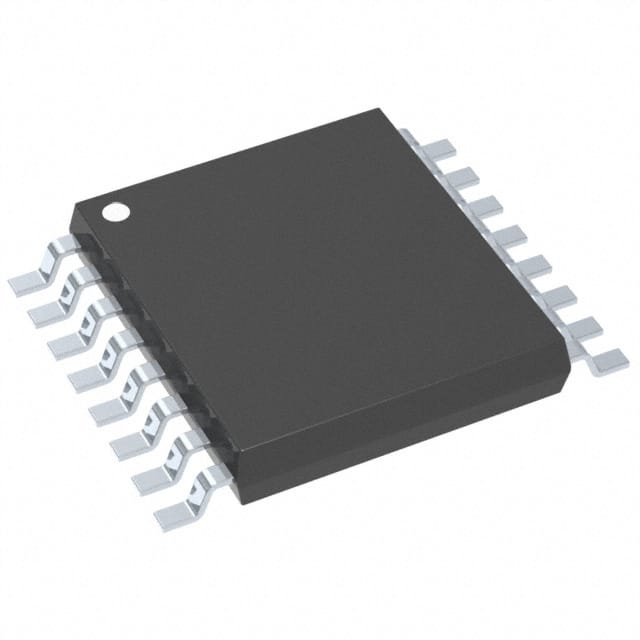

A6986H
IC REG BUCK ADJ 2A 16HTSSOPManufacturer: STMicroelectronics
Categories: DC DC Switching Regulators
Quality Control: Learn More
The STMicroelectronics A6986H is a high-performance buck switching regulator designed for demanding automotive applications. This component, a member of the STMicroelectronics family of DC-DC switching regulators, features an adjustable positive output voltage ranging from 0.85V to 38V, capable of delivering up to 2A of output current. Its step-down topology utilizes a synchronous rectifier for enhanced efficiency. The A6986H operates with a wide input voltage range of 4V to 38V and offers a flexible switching frequency from 250kHz to 2MHz. Packaged in a 16-PowerTSSOP (0.173", 4.40mm Width) for surface mounting, this AEC-Q100 qualified device is suitable for operation across a temperature range of -40°C to 150°C (TJ). Industries benefiting from its robust design include automotive infotainment, advanced driver-assistance systems (ADAS), and power management solutions.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 16-PowerTSSOP (0.173"", 4.40mm Width) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 250kHz ~ 2MHz |
| Voltage - Input (Max) | 38V |
| Topology | Buck |
| Supplier Device Package | 16-HTSSOP |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 38V |
| Voltage - Input (Min) | 4V |
| Voltage - Output (Min/Fixed) | 0.85V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
