A5975D
IC REG BUCK ADJ 3A 8HSOPManufacturer: STMicroelectronics
Categories: DC DC Switching Regulators
Quality Control: Learn More

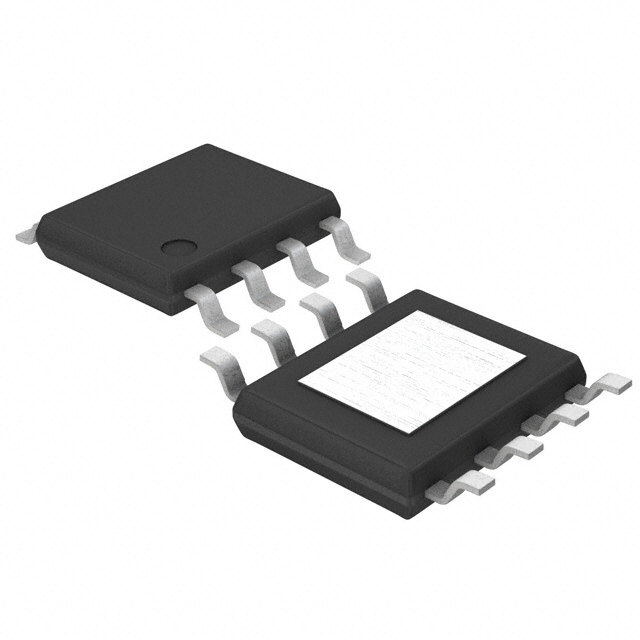

The STMicroelectronics A5975D is a monolithic integrated circuit designed for DC-DC step-down (buck) conversion. This device functions as a positive adjustable switching regulator, capable of delivering up to 3A of output current with an input voltage range of 4V to 36V. The output voltage is adjustable from a minimum of 1.235V up to 35V. Featuring an internal switch and a switching frequency of 250kHz, the A5975D simplifies external component selection. Its topology is a non-synchronous buck converter. This component is qualified to the AEC-Q100 standard, making it suitable for automotive applications. The A5975D is supplied in an 8-lead HSOP package with an exposed pad, designed for surface mounting. It operates within an extended temperature range of -40°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 250kHz |
| Voltage - Input (Max) | 36V |
| Topology | Buck |
| Supplier Device Package | 8-HSOP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 35V |
| Voltage - Input (Min) | 4V |
| Voltage - Output (Min/Fixed) | 1.235V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
