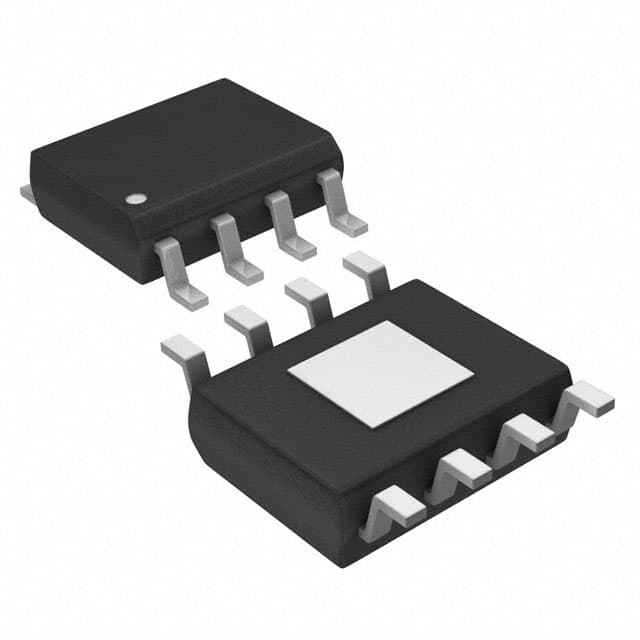

A5975AD
IC REG BUCK ADJ 2.5A 8HSOPManufacturer: STMicroelectronics
Categories: DC DC Switching Regulators
Quality Control: Learn More
STMicroelectronics A5975AD is a high-performance, adjustable positive output buck switching regulator designed for demanding applications. This device operates with an input voltage range of 4V to 36V and can deliver up to 2.5A of output current. Featuring a 500kHz switching frequency, the A5975AD utilizes a non-synchronous buck topology to achieve efficient step-down voltage conversion. The output voltage is adjustable from 1.235V up to 35V. Supplied in an 8-HSOP package with an exposed pad, it requires surface mounting. This component is qualified to AEC-Q100 and is rated for automotive applications, operating across a wide temperature range of -40°C to 150°C (TJ). It is typically found in automotive power management systems and other high-reliability electronic designs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 2.5A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 500kHz |
| Voltage - Input (Max) | 36V |
| Topology | Buck |
| Supplier Device Package | 8-HSOP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 35V |
| Voltage - Input (Min) | 4V |
| Voltage - Output (Min/Fixed) | 1.235V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
