L6730C
IC REG CTRLR BUCK 20TSSOPManufacturer: STMicroelectronics
Categories: DC DC Switching Controllers
Quality Control: Learn More
STMicroelectronics L6730C is a highly efficient, single-output, step-down DC-DC controller IC. Operating as a buck regulator, this device features a transistor driver output and synchronous rectification for enhanced performance. The L6730C supports a switching frequency range of 100kHz to 1MHz, with a maximum duty cycle of 100%. Control features include Enable, Frequency Control, Phase Control, Power Good, and Soft Start. It is suitable for applications requiring a positive output voltage and operates from a supply voltage of 4.5V to 14V. The L6730C is available in a 20-HTSSOP (0.173", 4.40mm Width) Exposed Pad package, designed for surface mounting. This component finds application in power management systems across various industries, including consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |

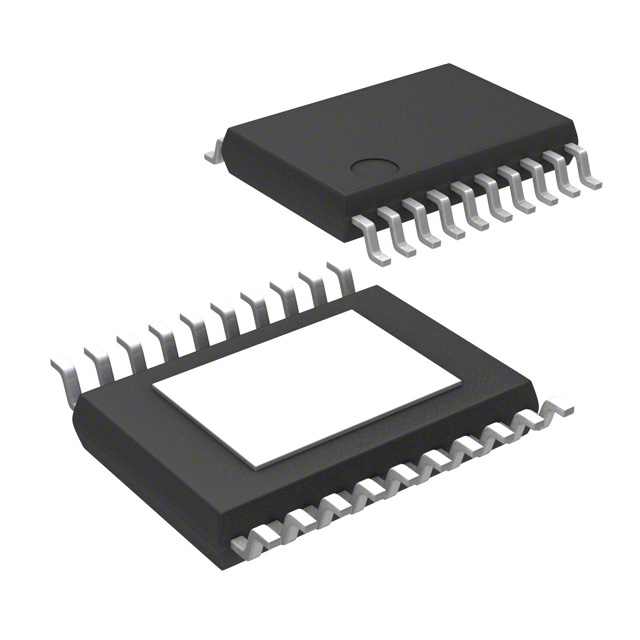

| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 1MHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 14V |
| Supplier Device Package | 20-HTSSOP |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Frequency Control, Phase Control, Power Good, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 100% |
| Clock Sync | Yes |
| Number of Outputs | 1 |
