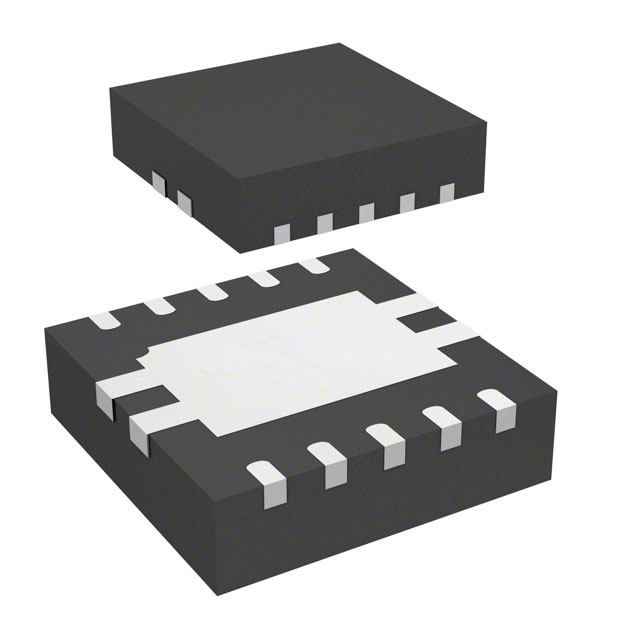

L6728AHTR
IC REG CTRLR BUCK 10-VFQFPNManufacturer: STMicroelectronics
Categories: DC DC Switching Controllers
Quality Control: Learn More
STMicroelectronics L6728AHTR is a high-performance buck (step-down) DC-DC controller designed for efficient power conversion. This transistor driver output IC features a fixed switching frequency of 600kHz, enabling compact external component selection. The L6728AHTR supports a wide input voltage range of 5V to 12V and offers a maximum duty cycle of 67%. Control features include Enable, Phase Control, and Power Good signaling, facilitating robust system design. Its 10-VFDFPN (3x3) package with an exposed pad ensures excellent thermal performance for surface mount applications. The device operates across a temperature range of -40°C to 125°C (TJ). This component is suitable for various applications including consumer electronics and industrial power supplies. The L6728AHTR is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFDFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 600kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 5V ~ 12V |
| Supplier Device Package | 10-VFDFPN (3x3) |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Phase Control, Power Good |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 67% |
| Clock Sync | No |
| Number of Outputs | 1 |
